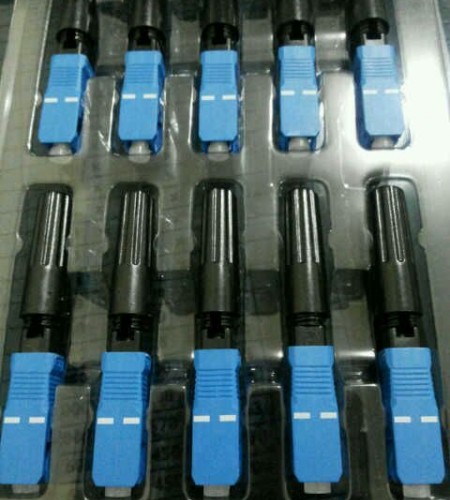

Face Conector SC/UPC

Face Conector SC/UPC

Adaptor / Connector SC untuk FTTH. Konektor yg bisa dipasang secara cepat / manual tanpa perlu menggunakan Splicer. Didalam sleeve terdapat Gel-nya.

Features:
1. FTTH project usable
2. Field installable
3. Fast, easy, accurate
4. Cost effective
5. Portable
6. Installation less than 2 minutes
7. Reliable and superior optical performance
8. Cable Tensile test complies with Telcordia GR-326-CORE

Application:
Premise environments
Connections at the desk for LAN environments
Patch panels
Direct equipment termination
Fiber to the Subscriber (FTTx) applications
Repair/replacement requirements
Equipment test leads

Product Details:
Model Number SC/UPC-P-01
cable applicable : 3.1 x 2.0 mm drop cable
cable diameter: 125mic. ( 657A & 657B )
clad diameter : 250mic.
fiber type application: single mode
operation time: about 100s (not including fiber management )
insertion loss: < 0.3dB (1310nm & 1550nm)
return loss: < -40dB
bare fiber strength: >5 N
clad strength : >10 N
of tension: >50 N
operation temperature: -40 -- +75 C
tensile strength (20 N): IL < 0.2dB & RL < 5dB
mechanical durability: (500 times) IL < 0.2dB & RL < 5dB
