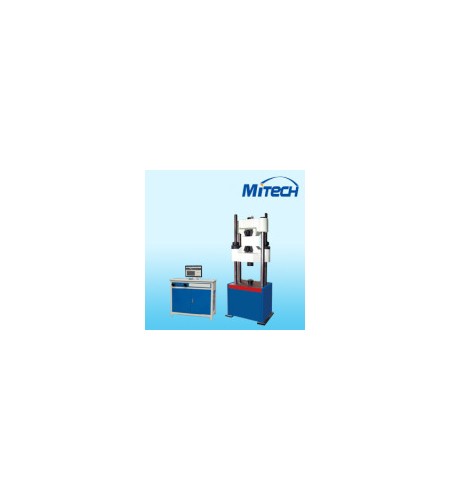

Mitech MEW Microcomputer Screen Display Hydraulic Universal Testing Machine
Perhatian!
Spesifikasi Mitech MEW Microcomputer Screen Display Hydraulic Universal Testing Machine
- Model NO.: Mitech MEW
- Trademark: MITECH
- Origin: China
MEW series microcomputer screen display hydraulic universal testing machine is mainly used in mechanical property tests of metal and non-metal materials such as tensile, compression, bending and shearing. Using the machine equipped with common testing software with simple operation and full functions, the test can be conducted very conveniently, consequently improving the test efficiency further. Curves and relevant test data can be inquired and printed from the test results. It is ideal testing equipment for industrial and mining establishments, research institutions, universities and colleges, construction quality supervision and detection stations etc.
II. Main technical parameters
| Main technical parameters | MEW | ||||||||
| 100D | 300D | 600D | 1000D | 1000A | |||||
| Maximum testing force (KN) | 100 | 300 | 600 | 1000 | 1000 | ||||
| Force measuring range | 4%-100% | ||||||||
| Relative error on indicated values of testing force | Better than ±1%of the indicated value | ||||||||
| Deformation precision | ±1% (or ±0.5%) | ||||||||
| Tensile space | 550mm | 600mm | 600mm | 600mm | 700mm | ||||
| Compression space | ≥500mm | 650mm | |||||||
| Clamping type | Manual clamping | Manual clamping/Automatic clamping | |||||||
| Clamping diameter of round specimen (mm) | Φ6-Φ26 | Φ13-Φ40 | Φ13-Φ60 | ||||||
| Clamping thickness of flat specimen | 0-15 mm | 0-30mm | 0-40mm | ||||||
| Diameter of shearing specimen | 10 mm (Alternative) | ||||||||
| Dimension of upper and lower press board | Φ120mm (Alternative 204×204 mm) | ||||||||
| Maximum distance between bending fulcrums | Optional | ||||||||
| Power of oil pump motor | 1.1KW | ||||||||
| Power of beam up-down movement motor | 0.75KW | ||||||||
| Deformation testing device | |||||||||
| Safety protective device | Extensometer | ||||||||
| Net weight (Kg) | Software protection and mechanical limit protection4000 | ||||||||
