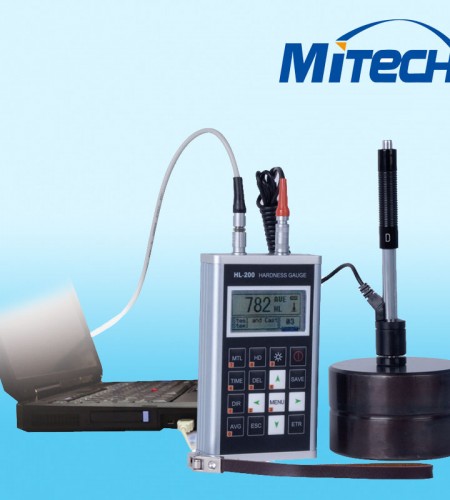

Mitech (HL200) Portable Leeb Hardness Tester
Perhatian!
Spesifikasi Mitech (HL200) Portable Leeb Hardness Tester
- Model NO.: HL200
- Trademark: Mitech
- Origin: Beijing, China (Mainland)
(170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB
Measuring direction: 360°
Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS
Display: DOT matrix LCD, 128× 64 dots
Data memory: Max. 500 groups(relative to impact times 32 1)
Working voltage: 3V(2 AA size alkaline battery)
Continuous working period: About 50 hours(With backlight off)
Communication interface: USB1.1
Main Application
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece.
| No. | Type of impact device | Hardness value of hardness block | Error of displayed value | Repeatability |
1 |
D |
760± 30HLD 530± 40HLD |
± 6 HLD ± 10 HLD |
6 HLD 10 HLD |
2 |
D |
50± 5 HLC 30± 6 HLC |
± 1 HRC ± 2 HRC |
1 HRC 2 HRC |
3 |
D |
700± 30HB 500± 40HB |
± 5 HB ± 8 HB |
5 HB 8 HB |
