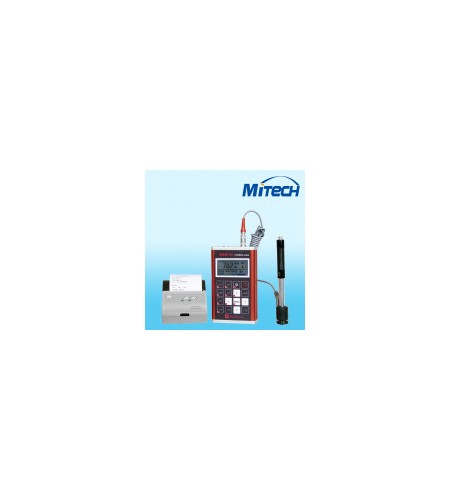

Mitech (MH210) Portable Leeb Hardness Tester

Compact metal case, suitable for use under poor working conditions. Test at any angle, even upside down.
Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
Large screen(128× 64 DOT matrix LCD), showing all functions and parameters. With EL background light.
Software calibration function.
Software to connect with PC via RS232 port. Micro printer support.
Outline: 132*76.2mm Weight: 345g
Technical Specifications:
Error and repeatability of displayed value

Measuring range:
(170-960)HLD, (17-68.5)HRC, (19-651)HB, (80-976)HV, (30-100)HS, (59-85)HRA, (13-100)HRB
Measuring direction: 360°
Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS
Display: DOT matrix LCD, 128× 64 dots
Data memory: Max. 500 groups(relative to impact times 32 1)
Working voltage: 3V(2 AA size alkaline battery)
Continuous working period: About 50 hours(With backlight off)
Communication interface: RS232

Main Application
Die cavity of molds
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Thesting surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece.
