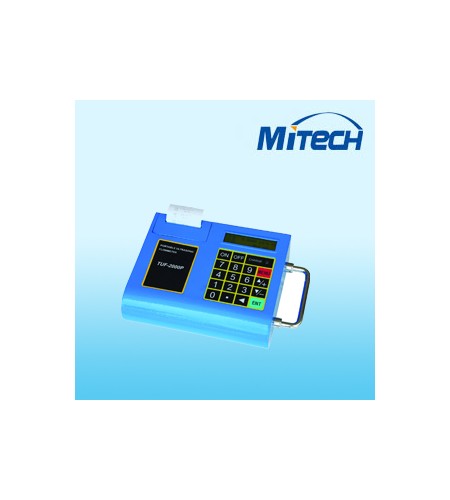

MITECH Ultrasonic Flowmeter (TUF-2000P)

Main Features
High accuracy
Measuring
Linearity: Better than 0.5%, Repeatability: Better than 0.2%,
Accuracy: Better than ± 1%
Non-intrusive
Measuring
Non-intrusive, clamp-on transducer, no pressure drop, no
Pipe disturbance.
Wide measuring
Range
Several types transducer for selection, measuring pipe size
From DN15mm to DN6000mm
Chinese & English
Menu
Chinese & English display, easy to operate.
Large capacity
Battery
Built-in rechargeable Ni-MH rechargeable battery, provide
Over 20 hours of continuous operation
Built-in printer
Built-in mini thermal printer with instant and timing print of
Over 20 measuring data
Built-in data logger Uplink over 20 measuring data to computer or internet

General Specification:
Items Specification s
Main unit
2 line x 20 character LCD with backlight
Working temperature: -20--60 º C
Mini thermal printer with 24 line character output
4 x 4 + 2 pushbutton keypad
RS-232 interface for networking
Transducer
Options
TS-1: Small size transducer (magnetic) for pipe size:
DN15-100mm, liquid temperature ≤ 110 º C
TM-1: Medium size transducer (magnetic) for pipe
Size: DN50-1000mm, liquid temperature ≤ 110 º C
TL-1: Large size transducer (magnetic) for pipe size:
DN300-6000mm, liquid temperature ≤ 110 º C
Liquid types
Water, sea water, industrial sewage, acid and alkali liquid,
Various oils etc. Liquid which can transmit sound wave.
Flow velocity
Range
0- ± 30m/s
Accuracy Better than ± 1%
Power Supply
Built-in rechargeable Ni-MH battery (for 20 hours operation) or
AC 220V

Power
Consumption
2W
Charging Intelligent charging with AC 220V
Weight Net weight: 2.5kg (main unit)
Remarks
With a high strength carrying case suitable for normal and
Harsh environment.
