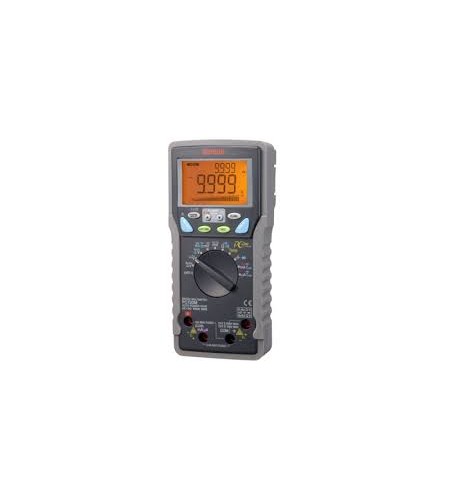

Sanwa PC 720M Digital Multimeter
Gambar Produk
Sanwa PC 720M Digital Multimeter
Brand
Sanwa
Minimum Pembelian
1 Unit
Maximum Pembelian
5 Unit
Pengiriman
1 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
155 kali
Update Terakhir
09-07-2018
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Sanwa PC 720M Digital Multimeter
Sanwa PC 720M High Accuracy Digital Multimeter
■4 digits 9999 count & 3-5/6 digits 6000 count
■AC True RMS
■Dual display with backlight
■Automatic measurement for ACV/DCV/Ω under low impedance
■High speed bar graph
■Capacitance measurement
※Not suitable for measurement of condensers with large leak current.■K type temperature -50℃〜1000℃
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle
measurement
■Conductance measurement
■MAX, MIN, MAX-MIN recording mode
■Capture (peak hold) 1ms in duration
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)
Data Logging Mode
■87,328 data points in built-in memory
(single display)
43,664 data points in built-in memory
(dual display)
■Selection of measurement interval
0.05s/0.1s/0.5s/1s/2s/3s/4s/5s/10s/15s/30s/
60s/120s/180s/300s/600s
■Auto-standby mode when a sampling speed
of 30s or longer is selected
■Export logged data to PC
※Optional accessory PC Link7 is necessary.
Display : numeral display 9999 & 6000, bar graph 41 segments
Sampling rate : 5 times/sec., 60 times/sec. for bar graph Max.EN61326-1:2006
■Battery life : Approx. 100h (alkaline battery) at DCV range
Software : PC Link7
Optical PC link cable : KB-USB7
Clamp probe : CL-20D, CL-22AD, CL33DC
Temperature probe : T-300PC (PC Link software is necessary.) K-8-250〜800
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-PC7
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
