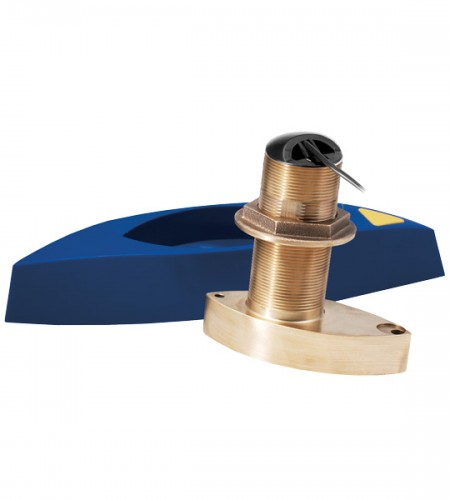

Airmarr B765LH CHIRP

Features

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 115 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• All the advantages of the larger Thru-Hull CHIRP transducers, suitable for smaller boats
• Bronze transducer housing with High-Performance Fairing
• Boat Size: Up to 9 m (30’) and above
• Hull Type: Fiberglass or wood

Specifications

• Hull Deadrise: Up to 24° with a fairing
• Acoustic Window: Urethane
• Weight: 2.5 kg (5.5 lb)

Technical Data

Transducer Designation:
L/H: 40-75A / 130-120C
