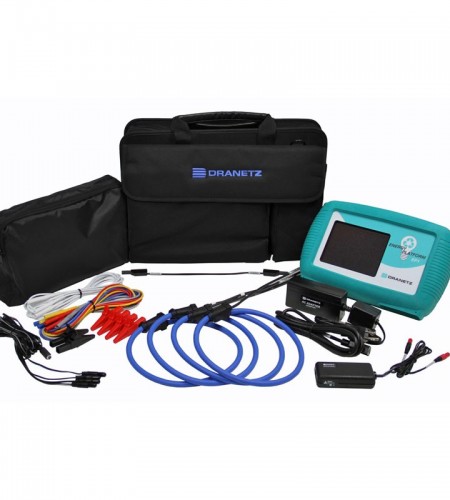

MITCHEEL Dranetz Energy

Measured Parameters

Power:  Volts, Amps, Watts, Volt-Amperes, Volt-Amperes Reactive, True Power Factor, Displacement Power Factor
Demand: Demand, Energy, Forward Energy, Reverse Energy
Harmonics: Harmonics & Interharmonics Per IEC 61000-4-7, THD, TID to 63rd, Crest Factor, K Factor, Transformer Derating Factor, Telephone Influence Factor

Measurement Specifications

Voltage: (4) Voltage Channels, 1-600 Vrms, AC/DC, 0.1% rdg + 0.05% FS, 256 s/c, 16 bit ADC. Channel A, B, C Single Reference., Channel D Differential Reference
Current: (4) Current Channels, 1-6000 Arms, CT Dependent, AC/DC, 256 s/c, 0.1% Reading + CTs, 16 Bit ADC
Power: W, VA, VAR, 0.2% Reading ±0.1% FS. Per Phase + CTs
Frequency Range: 45-65 Hz. Phase Lock Loop, 10 mHz. Resolution
Distortion: VTHD, ITHD, 1% Reading ±0.05% FS. Per Channel + CTs

General Specifications

Display: ¼ VGA Color Touch Interface
AC Power Supply/Charger: 90-264 VAC, 47-63 Hz., 20W Max., 2hr Rechargeable Battery
Removable Memory: Compact Flash, 4GB Min.
