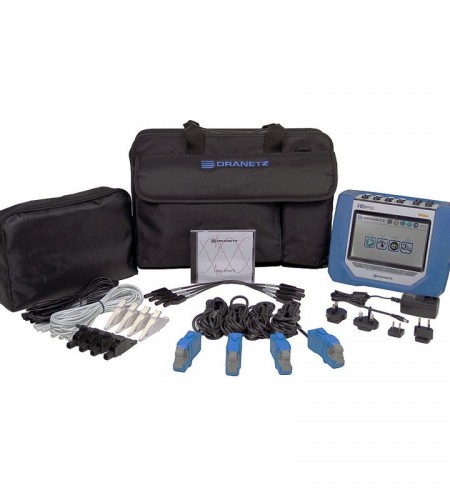

MITCHEEL Dranetz HDPQ

MEASURED PARAMETERS
(4) Differential Voltage: 16 bit resolution
0-1000Vrms, AC/DC, ±0.1 % reading, <40V ±0.5%FS
IEC 61000-4-30 Class A: 60-1000Vrms, ±0.1 % of Udin, range of
10% ~ 150% of Udin
Transients: 0-1400Vpk, ±0.2 % of Udin
(4) Current (rms): 512 s/c, 16 bit resolution
Range probe dep., AC/DC, +/- 0.1% reading
+/- 0.05% FS
Transients: Range probe dep., ±0.2 % of Udin
Frequency:
16-25Hz, 42.5-69Hz, +/- 0.01Hz

CALCULATED PARAMETERS
Power/Energy - 1 Second sampling
Real Power (W) - P: meets 0.2S requirements, range probe dep.
Apparent Power (VA) - S: meets 0.2S requirements, range probe dep.
Reactive Power (var) - Q: meets 0.2S requirements, range probe dep.
Power Factor (W/VA) -”true” 1 to 0 to -1
Displacement PF 1 to 0 to 1
Demand (in W): meets 0.2S requirements, range probe dep.
Energy (in Wh): meets 0.2S requirements, range probe dep.
Distortion - 200ms, 3 sec, 10 min windows
Vthd: 0-100%, +/- 5% for V>=1% Vnom,
V Ind Harm: DC, 2-127, +/- 5% for V>=1% Vnom
Ithd: 0-100%, +/- 5% for I>=1% Vnom,
I Ind Harm: DC, 2-63, +/- 5% for I>=1% Vnom
Misc.
Pst - 10 minutes: 0.2-10, +/- 0.05 @ Pst=1
Plt - 2 hours: 0.2-10, +/- 0.05 @ Pst=1

EASE OF USE FEATURES
Automatic Setups
Pre-programmed monitoring modes
Dashboards - PQ, Demand & Energy
Simultaneous PQ, Demand & Energy Monitoring
Mini Report

STANDARDS COMPLIANCE
Power Quality
IEC 61000-4-30 Class A: Edition 2 (2008)
IEEE 1159: 2009
* Future firmware upgrade to Edition 3
Power
IEEE 1459: 2000
Harmonics
IEC 61000-4-7 Class 1: Edition 2 (2008)
IEEE 519: 2014
Voltage Flicker
IEC 61000-4-15: Edition 2 (2010)
IEEE 1453: 2011
Compliance/Testing
EN 50160: 2010

GENERAL SPECIFICATIONS
Size (HxWxD) in inches and cm
Weight: 2 kg, 4.3lbs
Operating temperature: 0 to 50 deg C
Storage temperature: -20 to 60 deg C
Humidity: 10-90% non condensing
Clock accuracy and resolution
Internal: +/- 1 sec/day at 25deg C
NTP: +/-10 msec
GPS: +/-1 msec
AC Adapter: 90-264(max) 50/60Hz
Battery capacity and charge time: 3 hours run time on full charge
(2 hour charge time)
Memory size: 4GB
Display: 7” WVGA color graphic, Icon based touch LCD, LED Backlit
Languages: English, German, Spanish, French, Italian, Swedish, Finnish,
Polish, Chinese (traditional and simplified), Thai, Korean

COMMUNICATIONS
Ethernet
USB On the Go
Bluetooth via USB adapter (optional)
VNC remote control
Android® & Apple® App
