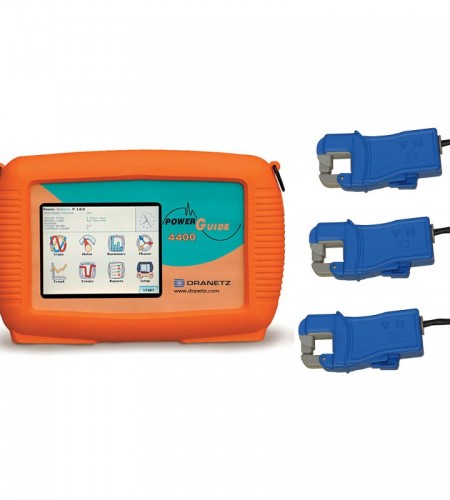

MITCHEEL Dranetz PowerGuide 4400
Perhatian!
Spesifikasi MITCHEEL Dranetz PowerGuide 4400
- Eight channels, 4 voltage & 4 current – AC or DC
- Intuitive color touch screen user interface
- Light weight — About 4 pounds, 2 kg — with rugged rubber boot
- Samples at 256 samples/cycle
- Independent voltage & current triggering, cross triggering
- Automatic setups – Start monitoring in seconds with only a few keystrokes
- Annunciator reports – Instant, color coded event alarms & reports
- Intelligent AnswerModule’s - Sag Directivity, Motor Health and Capacitor Switching
- Detailed event characterization of RMS variations and transients
- THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
- Remote communications—RS-232, Ethernet or USB
- Battery or AC powered - Built in 2Hr UPS battery with charger
- 4GB Compact Flash Memory
- Available languages — English, French, Italian, German, Spanish, Swedish, Polish, Thai, Korean, Finnish, Japanese, Chinese (Traditional and Simplified)
- Dran-View® PC software enabled (Windows XP, Vista, 7, 8)
- Complies with IEEE 1159 (PQ), IEEE 519 (Harmonics), IEEE 1453 (Flicker)
- Measures flicker according to IEC 61000-4-15; measures harmonics according to IEC 61000-4-7
- Complies with IEC 61000-4-30 Class A (certified by an independent laboratory), EN50160
- Measures a wide range of parameters, including W, VA, VAR, PF, DPF, Demand, Energy, crest factor, K factor, transformer derating factor, telephone interference factor and more
- UL and CE certified
- 3 year warranty
| Product Includes | PowerGuide 4400, Dran-View Enterprise, 4GB CF Data Card, AC Power Supply, Voltage Cable Set, SCC-4300 Soft Carry Case, US Line Cord, 4x 10A Clamp CT 's |
| size | 12” x 2.5” x 8” (meter) Weight: 3.8 lbs (meter) |
| Shipping Weight | 15.0000 |
| Power Supply | Rechargeable Batteries |
| Manufacturer | Dranetz |
| MPN | DBPG10PKG |
| Manufacturer Warranty | 3 year |
