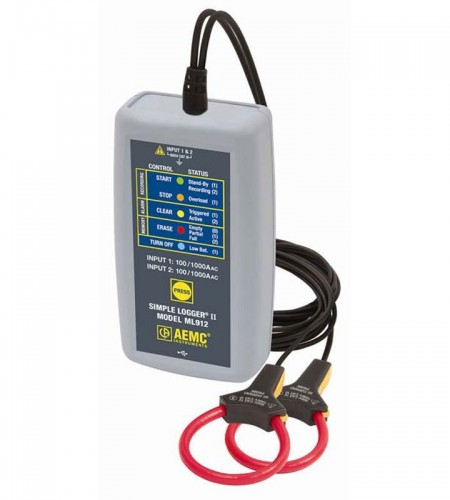

MITCHEEL AEMC ML912

Channels: Two
Input: Captive MiniFlex™ AC Current Flexible Sensors
Range: 0.5 to 100AAC 5 to 1000AAC
Accuracy (50/60Hz): 0 to 1A unspecified 1 to 100A: ±(1% of Reading + 0.5A), ±(1% of Reading + 0.5A)
0 to 5A unspecified 5 to 1000A:±(1% of Reading + 1A)
Resolution: 0.1A
Sample Rate: 64 samples/cycle
Storage Rate: Programmable from 125ms to 1 day
Storage Technique: Start/Stop, FIFO and Extended Recording Mode (XRM™)
Recording Length: 15 minutes to 8 weeks, programmable using DataView®
Memory: 240,000 measurements (512kB).
Recorded data is stored in non-volatile memory and retained
even if battery is low or removed.
Communication: USB 2.0 optically isolated
Power Source: 2x1.5V AA-cell alkaline batteries
Battery Life: 100 hrs to >45 days (dependent on storage rate/recording length)
Dimensions: 4.95 x 2.75 x 1.28" (136 x 70 x 32mm) w/o Sensor
Weight: 8.67 oz (245g) with battery
Sensor/Cable Length: Sensor: 6" (152mm) / Cable: 6 ft (2m)
Safety Rating: EN61010-1; 600V CAT III; 300V CAT IV; Pollution Degree 2
