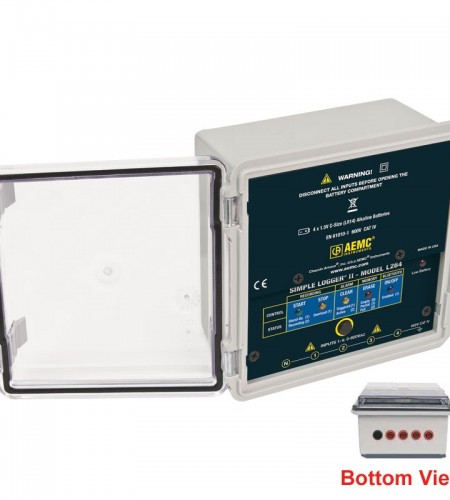

MITCHEEL AEMC L264

SPECIFICATIONS
Number of Input Channels: Four
Input Type: Four Voltage inputs (0-600Volts AC  or DC)
Accuracy: ±1% of Reading ± 1Volt
Sample Rate: 64 Samples per Cycle
Storage Rate: User programmable from every 250mS (1/4 sec) to every 12 hours
Storage Technique: Stop when full, FIFO, and Extended Recording Mode(XRM™)
Memory Capacity: 1,000,000 measurements (2MB)
Communications: Bluetooth wireless
Measurement Method: True RMS
Controls: One button to turn logger on/off and start/stop recording.
Indicators: Six LED status indicators
Power Source: Four “C” batteries
Operating temp and humidity ranges: 14 to 122°F , 0 to 85% rh
Storage temp and humidity ranges: -4 to 140°F , 0 to 85% rh
Dust Protection: Meets IP50 limited dust ingress protection
Electrical Safety Rating: 1000V Cat III, 600V Cat IV
Dimensions: 5.9” x 5.9” x 3.568” (logger only, not probes)
