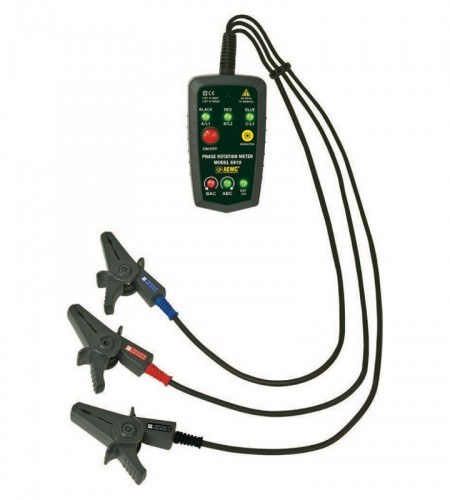

MITCHEEL AEMC 6610 Non-Contact Phase Rotation Meter

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. Presence of live wires and phase sequence are informed by LED indication and a buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator output.

Features

• Non-contact (no metal contact points)


• Operating voltage: 75 to 1000VAC


• Frequency range: 45 to 65Hz


• Phase rotation LED indicators (ABC or BAC)


• Bright LED indication Live or Open Phase (A, B, C)


• Includes three attached color-coded test leads with alligator clips for easy connection to the device under test


• Clipping the non-electrical contact alligator sensor clips onto the insulation of the phase conductor promotes operator safety during measurement


• Low battery indicator


• Back cover includes a magnet feature that can mount the instrument onto an AC distribution panel for easy measurement


• EN61010-1; 1000V CAT III; 600V CAT IV
