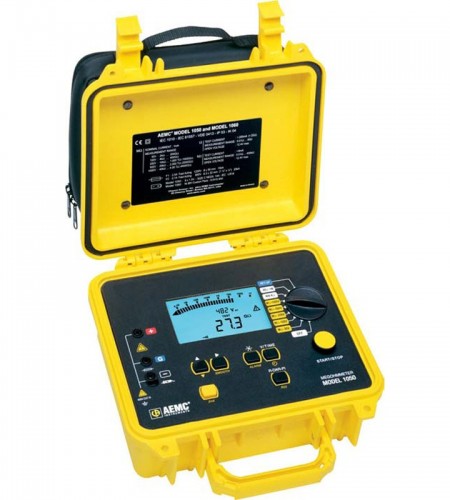

AEMC 1050 1000V Megohmmeters

The 1050 by AEMCis a 1000V Digital/Analog Insulation Tester. It is designed to facilitate testing by incorporating automatic measurement features and user friendly functions. The Model 1050 provides test voltage combinations of 50V, 100V, 250V, 500V and 1000V.
Measurements are displayed on a large dual-display LCD with bargraph for quick viewing of changes or trends.
It automatically provides the DAR and PI ratios directly on the display. User defined PI time intervals may also be programmed. The user may even select DAR or PI functions before the test, and the megohmmeter will stop at the appropriate time and display the results.
An automatic test inhibitor prevents testing on live circuits above 25V and discharge test voltage may be displayed.
A memory feature permits storage, recalling and displaying of resistance values taken at user specified intervals during a test.

Industrial Duty 1kV Megohmmeters Features

• Extremely Rugged Double Water-Proof Case Design for Added Electrical Insulation, Maximum Field Durability & Ease of  service


• O-ring Sealed & Waterproof to IP-54  (NEMA 4X)


• Capacitance of test sample and discharge voltage present at the test leads is displayed after test


• Insulation measurements from 2kW up to 10,000GW


• Automatic test inhibition if live voltage detected on line (>25V)


• Smooth and Alarm functions


• Automatic test voltage discharge & display of discharge voltage


• Programmable test voltage lock-out


• Programmable alarm set point


• Auto power-down when not in use


• "Time-Controlled" testing up to 60 minutes


• Rugged weatherproof field case


• Designed and built to IEC safety standards EN 61010-1, 1000V & Cat. III
