LINC PUMPS, PLUNGER METERING PUMPS
Gambar Produk
LINC PUMPS, PLUNGER METERING PUMPS
Brand
LINC-MILTON ROY
Minimum Pembelian
1 unit
Maximum Pembelian
100 unit
Pengiriman
30 Hari Setelah Pembayaran
Lokasi
Harga
Kontak Kami
Dilihat Sebanyak
358 kali
Update Terakhir
19-05-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi LINC PUMPS, PLUNGER METERING PUMPS

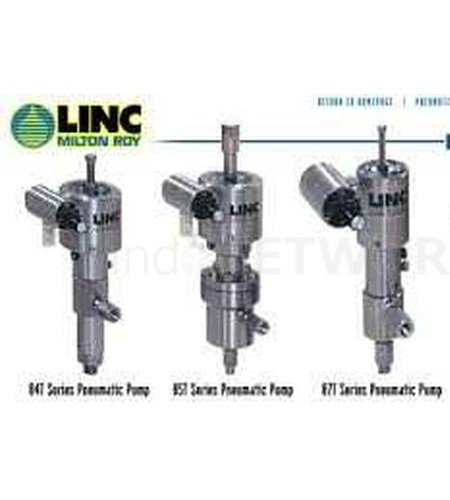

LINC Pumps
1. 84T Series Plunger Pumps
The LINC 84T Series Metering Pumps are built of 316 Stainless Steel (ss) to provide excellent corrosive resistance from chemicals in the harshest environments. The plungers are available in either 17-4ph ss (standard) or Ceramic to meet your specific application requirements.
- Pneumatic Operation .
- Corrosion Resistant .
- High Flow Turndown .
- Greater Reliability .
- Simple Maintenance .
- Ease of Installation .
- Intrinsically Safe .
- Flows: 0.07 gph (0.27 lph) to 90 gph (341 lph) .
- Discharge: Pressures up to 10,000 psig (690 barg) .
- Manual mode or automatic with solenoid valve.
- Aplications: Methanol, Corrosion & Scale Inhibitors
2. 85T Series Bellows Pumps
Built of 316 Stainless Steel for increased resistance to corrosive chemicals, the LINC 85T Series Pneumatic Metering Pump features a PTFE Bellows that is actuated by an intermediary fluid thereby isolating the chemical being pumped from the dynamic seals.
- Pressures up to 2,400 PSI
- Ceramic Plungers
- Plunger sizes 1/4" & 1/2"
- Ceramic Plungers
- 316 SS Check Valves
- Carbide Check Balls (Std.) 316 SS Available
- Dual Plunger Seals
- Available in a variety of Austenitic Metals
- Leak free Bellows Design Isolates chemicals for Seal Longevity &Environmental Protection.
3. LINC Timer, Model L13223
The LINC Timer is an adjustable device that operates all LINC metering pumps by producing pneumatic pulses to stroke the LINC pump. Each stroke of timer represents one discharge of the pump which then exhausts to allow the piston plunger to return. The number of strokes per minute is adjustable from 4-50 strokes and is adjustable to meet the needs of your specific application.
for more questions or inquiries, please contact us: 0816-956246 or send email to: info@rizkyadhipratama.com / pratama.adhirizky@yahoo.com / sales1@rizkyadhipratama.com.
1. 84T Series Plunger Pumps
The LINC 84T Series Metering Pumps are built of 316 Stainless Steel (ss) to provide excellent corrosive resistance from chemicals in the harshest environments. The plungers are available in either 17-4ph ss (standard) or Ceramic to meet your specific application requirements.
- Pneumatic Operation .
- Corrosion Resistant .
- High Flow Turndown .
- Greater Reliability .
- Simple Maintenance .
- Ease of Installation .
- Intrinsically Safe .
- Flows: 0.07 gph (0.27 lph) to 90 gph (341 lph) .
- Discharge: Pressures up to 10,000 psig (690 barg) .
- Manual mode or automatic with solenoid valve.
- Aplications: Methanol, Corrosion & Scale Inhibitors
2. 85T Series Bellows Pumps
Built of 316 Stainless Steel for increased resistance to corrosive chemicals, the LINC 85T Series Pneumatic Metering Pump features a PTFE Bellows that is actuated by an intermediary fluid thereby isolating the chemical being pumped from the dynamic seals.
- Pressures up to 2,400 PSI
- Ceramic Plungers
- Plunger sizes 1/4" & 1/2"
- Ceramic Plungers
- 316 SS Check Valves
- Carbide Check Balls (Std.) 316 SS Available
- Dual Plunger Seals
- Available in a variety of Austenitic Metals
- Leak free Bellows Design Isolates chemicals for Seal Longevity &Environmental Protection.
3. LINC Timer, Model L13223
The LINC Timer is an adjustable device that operates all LINC metering pumps by producing pneumatic pulses to stroke the LINC pump. Each stroke of timer represents one discharge of the pump which then exhausts to allow the piston plunger to return. The number of strokes per minute is adjustable from 4-50 strokes and is adjustable to meet the needs of your specific application.
for more questions or inquiries, please contact us: 0816-956246 or send email to: info@rizkyadhipratama.com / pratama.adhirizky@yahoo.com / sales1@rizkyadhipratama.com.
RIZKY ADHI PRATAMA
Rizky Adhi Pratama provides a wide range of Electrical Parts, Instrumentation, Mechanical.
we are the Other-OEM. Whether your need is a set of parts, long term agreements for parts, a full long term service agreement or a partner to complete your O&M package we are one of your solution to dedicate to your success.
we are the Other-OEM. Whether your need is a set of parts, long term agreements for parts, a full long term service agreement or a partner to complete your O&M package we are one of your solution to dedicate to your success.
Free Member
Kebayoran Arcade 3, Blok E No. 22, Jl. Boulevard Bintaro Jaya, Tangerang
Login Terakhir 02-11-2016
62-21-29521690
62-81214409372
