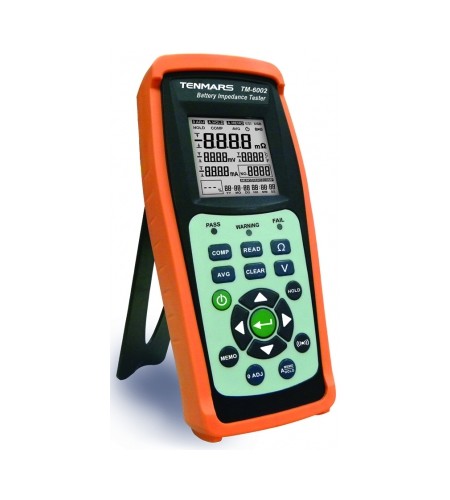

TENMARS TM-6002 Battery Impedance Tester

Product Description

TM-6002 is an ideal tester for automotive, UPS maintenance and telecommunication applications.
- Quick response time.
- Simultaneously display the results of battery Impedance,voltage measurements.
- Built-in comparator function to rate the conditions as pass,warning or fail

• Battery capacity : 0 to 500A / h.
• Resistance range : 40mΩ~40Ω. (Measuring Frequency : 1KHz ±30Hz)
• Voltage range : 4.000V / 40.00V
• Manual Data memory : 999 data sets.
• USB interface datalogger with 9999 records capacity.
• Comparator : Voltage , Impedance.
• Max. voltage measurement : 40VDC (battery checker).
• Comparator: 0~99 records (high / low). For battery internal impedance, voltage.
• Support the comparator function to rate the conditions as PASS, WARNING or FAIL.
• USB interface datalogger with 9999 records capacity.
• Power supply : 1.5V alkaline battery x 6 pcs.



        Resistance:

  Range	40mΩ	400mΩ	4Ω	40Ω
  Resolution	10µΩ	100µΩ	1mΩ	10mΩ
  Current	100mA	15mA	1.5mA	150µA
  Accuracy	±(0.8%reading+10dgt)


        Voltage:

  Range	4V	40V
  Resolution	1mV	10mV
  Accuracy	±(0.1%reading+10dgt)


  Temperature:

  Range	-20℃~60℃(-4℉~140℉)
  Resolution	0.1℃/0.1℉
  Accuracy	±1℃/±1.8℉
