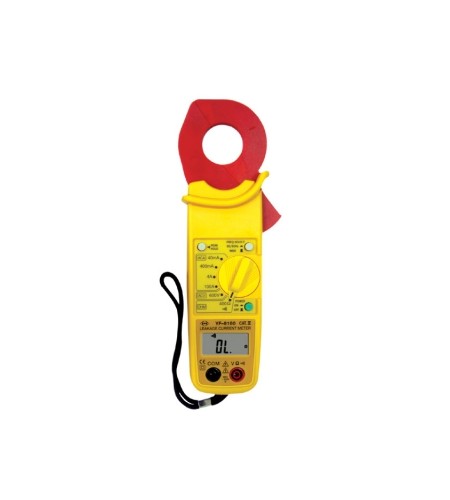

TENMARS YF-8160 100A Leakage AC Clamp Meter
Perhatian!
Spesifikasi TENMARS YF-8160 100A Leakage AC Clamp Meter
Product Description
- CAT III 600V.
- Maximum conductor size : 30mm.
- Display counts : 4,000.
- Test ranges: ACV (600V), ACA (100A), Ohm, Continuity.
- Leakage Current Test
Product Character
DISPLAY:
- 3¾ digits LCD with maximum reading 4000.
- Overload indication.
- Low battery indication.
FUNCTIONS:
- Peak Hold.
- Leakage Current Test.
- Test ranges: ACV (600V), ACA (100A) , Ohm, Continuity.
- Continuity test below 100Ohm will have buzzer sound.
- Alternative for supply frequency.
- With LPF (Low Pass Filter) function, 50/60Hz and wide frequency function (40~1KHz).
- Maximum conductor size : 30mm.
- Dimension : 250mm x 85mm x 35mm.
SPECIFICATIONS
|
Model |
YF-8160 |
|
Max measuring current |
100A |
|
Display counts |
4000 |
|
Max. Conductor size |
35mm |
|
AC Current |
0.01mA ~ 100A +/- (1.5%+5) |
|
Leakage current |
YES |
|
AC Voltage |
1V ~ 600V +/- (1.5%+5) |
|
Continuity buzzer |
YES (below 100Ohm ) |
|
Peak hold |
YES |
|
Size |
250*85*35mm |
|
Weight |
342g |
