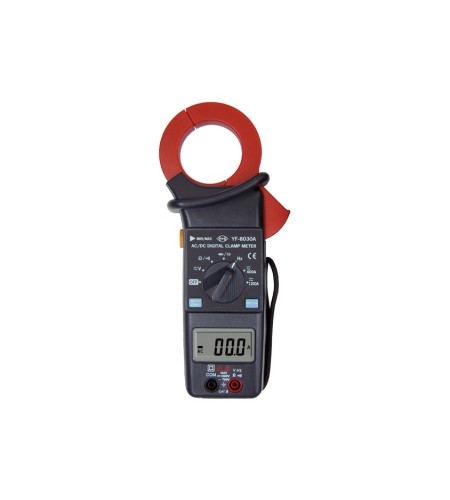

TENMARS YF-8030A AC/DC Clamp Meter
Perhatian!
Spesifikasi TENMARS YF-8030A AC/DC Clamp Meter
Product Description
CAT III 1000V
3-3/4 digit LCD with maximum reading of 4000.
Overload indication.
Automatic polarity.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1200A.
DC voltage range: 0 to 1000V.
DC current range: 0 to 1200A
Min/Max, Zero (REL).
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Frequency, Diode, Capacitance, Continuity.
Auto Power Off
|
Maximum Current |
1200 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
52mm |
|
AC Current |
0.01A to 1200A ±(2.0% + 5 dgt) |
|
AC Voltage |
0.1mV to 750V ±(1.2% + 3 dgt) |
|
DC Voltage |
0.1mV to 1000V ±(1.5% + 5 dgt) |
|
DC Current |
0.01A to 1200A ±(1.5% + 5 dgt) |
|
Resistance |
0.1Ω to 40MΩ |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Capacitance |
1pF to 30pF |
|
Frequency |
0.01Hz to 500KHz |
|
Bargraph |
Yes |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Min/Max |
Yes |
|
REL (Zero) |
Yes |
|
Dimensions |
221mm (L) x 62mm (W) x 35mm (D) |
|
Weight |
500g |
