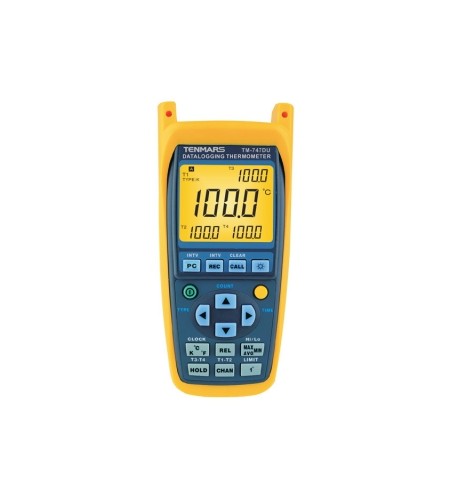

TENMARS TM-747DU_4 Channel Datalogging Thermometer

Thermocouple range

K Type : -100°C ~ 1300°C ( -148°F ~ 2372°F )
J Type : -100°C ~ 1000°C ( -148°F ~ 1832°F )
T Type : -100°C ~ 400°C ( -148°F ~ 752°F )
E Type : -50°C ~ 800°C ( -58°F ~ 1472°F )
R/S Type : 0°C ~ 1700°C ( 32°F ~ 3092 °F )
N Type : -100°C ~ 1300°C ( -148°F ~ 2372°F )

Accuracy (18°C ~ 28°C ambient)

K/J/E/T Type:
± (0.1% rdg + 0.7°C) -100°C ~ 1300°C
± (0.1% rdg + 1.4 °F) -148°F ~ 2372 °F

R/S Type:
± (0.1% rdg + 2 °C) 0°C ~ 1700°C
± (0.1% rdg + 4 °F) 32°F ~ 3092 °F

N Type:
± (0.1% rdg + 1.5 °C) -100°C ~ 1300°C
± (0.1% rdg + 3 °F) -148°F ~ 2372°F

Operation temperature and humidity

0°C~50°C (32°F~122°F), 0~80%RH

Operation temperature and humidity

-20°C ~ 60°C (-4°F ~ 140°F), 0~80% RH

Power requirement

Size AAA / 1.5V1UM-4 x 4pcs

Input protection at thermocouple input

24V AC/DC Maximum

Dimension (Includes housing)

184mm (L) x 82mm (W) x 44mm (H)

Weight (Includes housing, batteries)

Approx. 450g

Accessories:

Battery AAA/1.5V/UM-4 x 4 pcs
Holster x 1 pc
K Type thermocouple x 2 pcs
User’s manual x 1 pc
USB transmission wire x 1 pc
Temp Monitor S2 software CD x 1 pc
