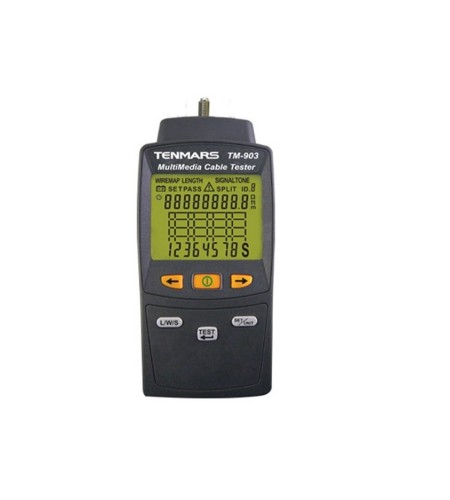

TENMARS TM-903 Multimedia LAN cable Tester
Perhatian!
Spesifikasi TENMARS TM-903 Multimedia LAN cable Tester
Product Description
- Detects opens, shorts, miswires and split pairs
on the twisted pair cabling.
- Measures length.
- Low battery detector.
- Auto backlit.
- Auto power off.
Aplication
The TM-903 Multimedia Cable Tester is a hand-held test instrument that lets you verify and troubleshoot the LAN cable of twisted pair.
It displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen.
Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable, video coaxial cable and RJ11 voice cable
Specification
|
Model: |
TM-903 |
|
Connectors type |
RJ-45, F-Connector and RJ11 |
|
Cable category |
LAN cable (UTP, STP), video coaxial cable and voice cable. |
|
Wire-map test |
Detects opens, shorts, miswires, split pairs |
|
Length test |
up to 255 M (836 ft) |
|
Length resolution |
0.1 m (ft) |
|
Length units |
Meter and Foot |
|
Accuracy |
+/- 10% + 1.0M (3 ft) |
|
Power |
1.5V battery x 6 |
|
Battery life |
Approx. continuous testing : 200 times |
|
Operate Maximum Power |
20mA |
|
Operating temp. and RH |
5 to 40 ºC, below 80% RH. |
|
Storage temp. and RH |
-10 to 60ºC, below 70%. |
|
Dimensions |
156(L) x 73(W) x 35(H) mm. |
|
Weight |
About 170g |
|
Accessories |
User’s manual x 1, 1.5V AAA battery x 6, Carrying case Test Cable x3, Remote ID (1) x1 |
|
Optional Remote ID |
Remote ID2 ~ ID7 |
