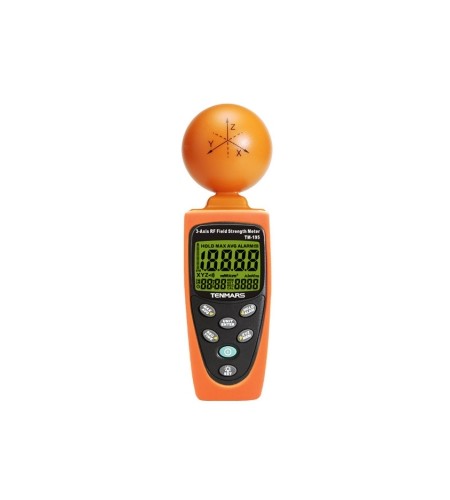

TENMARS TM-195

TM-195 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength and capable of measuring the frequency range of 50MHz~3.5GHz. It's ideal for the applications of:

  - RF power measurement for transmitters.

  - High frequency(RF)electromagnetic wave field strength measurement.

  - Mobile phone base station antenna radiation power density measurement.

  - Spy camera, wireless bug finder.

  - Wireless communication (CW, TDMA, GSM, DECT) applications.

  - Wireless LAN (Wi-Fi) detection, installation.

  - Cellular /Cordless phone radiation safety level.
  - Microwave oven leakage detection.
  - Personal living environment EMF safety.


SFECIFICATION

l    Display type: Liquid-crystal (LCD), 4-1/2 digits maximum reading 19999.

l    Measurement method: Digital, triaxial measurement.

l    Directional characteristic: Isotropic, triaxial.

l    Measurement range selection: one continuous range.

l    Display resolution:0. 1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2

l    Setting time: typically 1.5s (0 to 90% measurement value.)

l    Sample rate: 1.5 times per second.

l    Audible alarm: Buzzer.

l    Units: mV/m, V/m, µA/m, mA/m, µW/m2, mW/m2, µW/cm2

l    Display value: Instantaneous measured value, maximum value, average value, or maximum average value.

l    Alarm function: adjustable threshold with ON / OFF

l    Calibration factor CAL: adjustable

l    Manual data memory and read storage:200 data sets.

l    Batteries: 9V NEDA 1604, IEC 6F22 or JIS 006P

l    Battery life: Approximate 15 hours.

l    Auto power off: Default time 15 minutes. Adjustable threshold 0~99 minutes.

l    Operating temperature range: 0°C to + 50°C

l    Operating humidity range: 25% to 75 % RH

l    Storage temperatures range: -10°C to +60°C

l    Storage humidity range: 0% to 80% RH

l    Dimensions: 60(L)*60(W)*195(H) mm.

l    Weight (including battery): Approx.200g.

l    Accessories: User’s manual, 9V battery, Carrying case.
