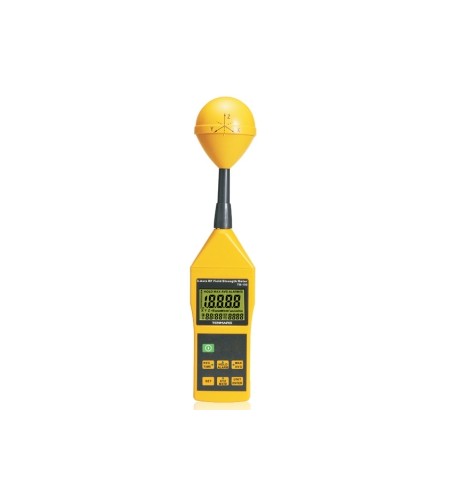

TENMARS TM-196
Perhatian!
Spesifikasi TENMARS TM-196
- Frequency range: 10MHz~8GHZ.
- Sensor: Triple Axis (X, Y, Z).
- Manual data memory (Max & AVG) records.
- Calibration factor, Alarm and Clock settings
TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength and capable of measuring the frequency range of 10Mz~8GHz. It's ideal for the applications of:
- RF power measurement for transmitters.
- High frequency(RF)electromagnetic wave field strength measurement.
- Mobile phone base station antenna radiation power density measurement.
- Spy camera, wireless bug finder.
- Wireless communication (CW, TDMA, GSM, DECT) applications.
- Wireless LAN (Wi-Fi) detection, installation.
- Cellular /Cordless phone radiation safety level.
- Microwave oven leakage detection.
- Personal living environment EMF safety
SPECIFICATION
| Measurement ranges |
38mv to 11v/m |
| Display |
3-3/4 digits maximum reading 3999 |
| Frequency range |
10MHz ~ 8GHz |
| Measurement units |
mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2 |
|
Display resolution |
0.1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2 |
| Manual data memory |
Read storage: 200 data sets. |
| Alarm function |
Adjustable threshold with ON/ OFF |
| Memory Recall | Records Maximum & AVG |
| Calibration factor CAL |
adjustable |
| Sampling Time |
2.5 times per second. |
| Operating Temperature and Humidity |
0 to 50ºC ( 32ºF to 122ºF ). Max. 80% RH. |
| Power Supply |
9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1 |
| Battery life | approx. 5 hrs. |
| Weight | approx. 180g |
| Size: | 380(L)*80(W)*77(H) mm. |
| Accessories: |
Instruction manual and hard carrying case |
