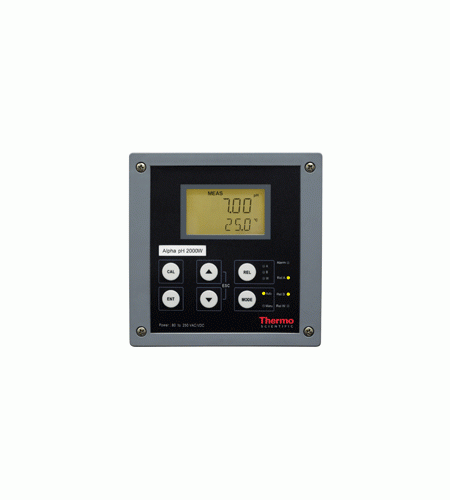

EUTECH Thermo Scientific Alpha pH 2000
Gambar Produk
EUTECH Thermo Scientific Alpha pH 2000
Brand
EUTECH
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
63 kali
Update Terakhir
03-05-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi EUTECH Thermo Scientific Alpha pH 2000
|
Product Specification |
Description | |
| pH | ||
| Range | -2.00 to 16.00 pH | |
| Resolution | 0.01 pH | |
| Accuracy | ±0.01 pH | |
| ORP | ||
| Range | -1000 to 1000 mV / 0 to 100 % | |
| Resolution | 1 mV / 0.1 % | |
| Accuracy | ±1 mV / ±0.2 % | |
| Temperature | ||
| Range | -10.0 to 125.0 ºC / 14.0 to 257.0 ºF | |
| Resolution | 0.1 ºC / 0.1 ºF | |
| Accuracy | ±0.5 ºC / ±1.0 ºF | |
| Sensor | Pt100 / Pt1000 (jumper selectable); 2 or 3 wire | |
| Compensation | Auto/manual (independent process/CAL temperature) | |
| Set Point And Controller Functions | ||
| Set Point 1 (SP1)/ Set Point 2 (SP2) |
-2.00 to 16.00 pH or -1000 to 1000 mV or 0 to 100 % |
|
| Switching pH Hysteresis | 0.1 to 1 pH | |
| Switching ORP Hysteresis | 10 to 100 mV or 1 to 10.0 % | |
| Function (Switchable) | P/PI control (pulse length/pulse frequency/proportional integral); limit control; off | |
| Adjustable Period With Pulse Length Controller | 0.5 to 20 sec | |
| Adjustable Period With Pulse Frequency Controller | 60 to 120 pulse/min | |
| Integral Action Time (IAT) | 0 to 999.9 min | |
| Pickup/Dropout Delay | 0 to 2000 sec | |
| Wash Cycle | 0.1 to 200.0 hr | |
| Wash Duration | 1 to 2000 sec | |
| Contact Outputs | 1 SPDT, 3 SPST relays | |
| Switching Voltage/ Current/Power | 1/8 HP: at 125 VAC / max. 0.74 A / max. 93 VA 1/8 HP: at 250 VAC / max. 0.37 A / max. 93 VA |
|
| Alarm Functions | ||
| Function (Switchable) | Steady or fleet (pulse) | |
| Pickup Delay | 0 to 2000 sec | |
| Switching Voltage/ Current/Power |
1/8 HP: at 125 VAC / max. 0.74 A / max. 93 VA 1/8 HP: at 250 VAC / max. 0.37 A / max. 93 VA |
|
| Electrical Data And Connections | ||
| Transmitter Function | Two 0/4 to 20 mA scalable outputs for pH/ORP and temperature, galvanically isolated | |
| CU 22 Function | 22 mA current output | |
| Isolated Output Voltage | 12 V ±0.5 V (max. 50 mA) | |
| Hold Function Switch | To freeze output current and deactivate control relays | |
| Load | Max. 600 Ohm | |
| pH/ORP Input | BNC (1012 impedance); asymmetrical/symmetrical | |
| Connection Terminal | 3-pin, 8-pin, 9-pin & 13-pin terminal, detachable blocks (For TSPHCTP2000W) |
3-pin, 9-pin & 19-pin terminal, detachable blocks (For TSPHCTP2000P) |
| Display | ||
| LCD | UV coat, backlit 14 segments display with symbols for status information | |
| Backlight | On/off selectable with four levels of brightness control | |
| Power Supply | ||
| Input |
80 to 250 VAC/DC ; 50/60 Hz ; 10 VA | |
| Main Fuse | 250 mA, anti-surge, S504 Bussmann |
|
| Pollution Degree | 2 | |
| Transient Overvoltage Category | II | |
| EMC Specifications | ||
| Emitted Interference | According to EN 61326 | |
| Immunity To Interference | According to EN 61326 | |
| Environmental Conditions | ||
| Operating Temperature Range | 0 to 40 ºC | |
| Max. Relative Humidity | 80 % up to 31 ºC decreasing linearly to 50 % at 40 ºC |
|
| Mechanical Specifications | ||
| Dimensions (WxHxD) | 144 x 144 x 110 mm (For TSPHCTP2000W) |
96 x 96 x 175 mm (For TSPHCTP2000P) |
| Weight | 745 g (unit) / 1100 g (packed) (For TSPHCTP2000W) |
550 g (unit) / 950 g (packed) (For TSPHCTP2000P) |
| Ingress Protection | IP66 (NEMA 4X) (For TSPHCTP2000W) |
IP54 (front panel) (For TSPHCTP2000P) |
