LENTON Top loading furnaces

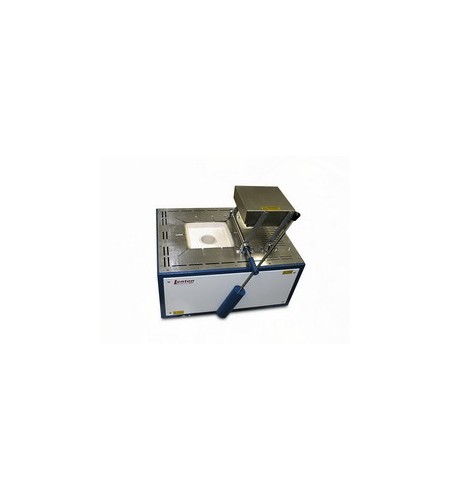

High temperature top loading furnace

• Internal chamber dimensions: 250mm high x 160mm wide x 160mm deep
• Maximum temperature 1600°C, maximum continuous operating temperature 1550°C
• 60mm i/d alumina liner mounted vertically in chamber to receive crucible
• Gas inlet and vent outlet for exhaust gases provided
• Element type: silicon carbide elements mounted along two sides of the chamber
• Remote mounted contols featuring dual display PID temperature controller (type Eurotherm 2216CC)
• Type R thermocouple
• 415-240 volts three phase with neutral, 5kW

Top loading oven

• Internal chamber dimensions: 250mm diameter x 120mm high
• Capable of holding 4 crucibles each 80mm diameter and 80mm high
• Maximum operating temperature 600°C, uniformity +3°C in a steady state
• Element type: mineral insulated sheathed elements wrapped around internal stainless steel chamber
• Dual display PID temperature controller (type Eurotherm 2216CC)
• Type K mineral insulated thermocouple
• 220-240 volts single phase, 1.5kW
•
