LENTON Rotating tube furnaces

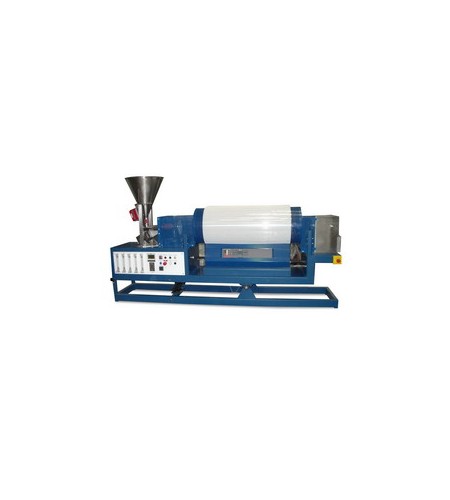

Three zone horizontal rotating and tilting tube furnace

• Horizontal three zone tube furnace, based on model PTF15/75/610  with rotating and tilting mechanism and atmosphere control system
• Worktube fitted with direct drive rotation of 1 to 8 rpm
• Simple tilting mechanism of up to 12° from the horizontal
• Sealed hopper and vibrating feeder supplied to operate with gas tight worktube atmosphere
• Capable of holding a 75mm i/d x 86 mm o/d worktube of heated length 610mm
• Maximum temperature 1500°C, maximum continuous operating temperature 1450°C
• Element type: silicon carbide rod elements mounted in parallel to the worktube
• Insulation: low thermal mass ceramic board insulation
• Central dual display PID temperature controller/programmer with sixteen segments (type Eurotherm 2408CP) combined with two independent end zone controllers, each with eight zones (type Eurotherm 2416CG), which can be linked to provide slave control
• Type R thermocouple
• 380-220 volts three phase plus neutral, 9.2kW
