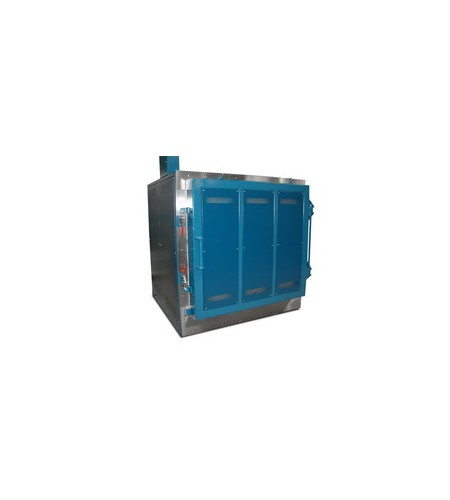

LENTON Large chamber furnace

Special large chamber furnace

• Large chamber furnace for metal or ceramic work pieces, to be loaded/unloaded by fork truck
• Chamber dimensions: 1200mm high x 1200mm wide x 1200mm deep
• Hearth height : 500mm
• Maximum temperature 1000°C; maximum recommended continuous operating temperature 850°C
• Temperature uniformity: +10°C at 850°C in steady state
• Fast cool fan option fitted to ensure rapid cooling of furnace and work pieces
• Element type: resistance wire wound on ceramic tubes, mounted on two sides
• Insulation: refractory brick hearth to withstand heavy workloads of up to 200kg
• Low thermal mass ceramic fibre insulation used in walls ensures rapid heat up
• Remote mounted contols featuring dual display PID temperature controller/programmer with sixteen segments (type Eurotherm 2408CP), cascade control via PDSIO to two 2216 controllers, plus independent overtemperature controller (type Eurotherm 2132) to protect from overheating
• 415 volts three phase with neutral and earth, 80A per phase
