LENTON Split tube furnaces

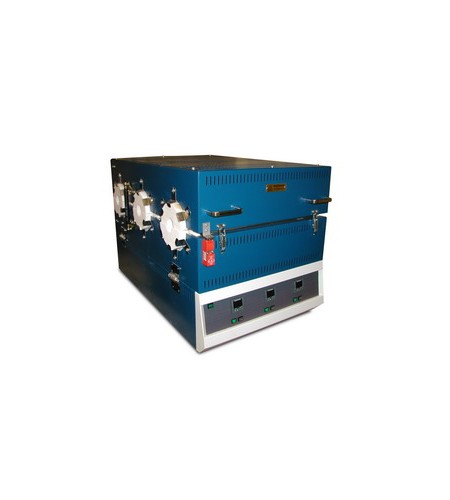

Horizontal triple split tube furnace

• Triple split tube furnace, housed in a single case, with front opening hinged lid
• Capable of holding 3 x 45mm o/d quartz worktubes
• Maximum temperature 1200°C, maximum continuous operating temperature 1150°C
• Element type: spiral wire elements vacuum formed into low thermal mass ceramic fibre insulation
• Triple independent dual display PID temperature controller/programmer with 8 segment pairs (type Eurotherm 3216P1) to independently control each worktube temperature
• Type N thermocouple
• 220 volts single phase, 4.5kW

Vertical split tube furnace

• Vertical split tube furnace
• Capable of holding a 135mm o/d worktube of heated length 2030mm
• Maximum temperature 1200°C, maximum continuous operating temperature 1000°C
• Element type: spiral wire elements vacuum formed into low thermal mass ceramic fibre insulation
• Central dual display PID temperature controller (type Eurotherm 2216CC) combined with two independent end zone controllers (type Eurotherm 2216CC)Type K thermocouples
• 415-240 volts three phase, 4 wire and earth, 16 amps per phase
