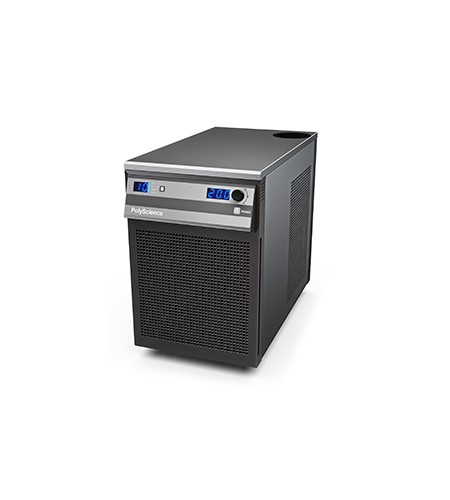

Polyscience 6500 Series 1/2 HP Chiller, Turbine Pump
Gambar Produk
Polyscience 6500 Series 1/2 HP Chiller, Turbine Pump
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
188 kali
Update Terakhir
08-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience 6500 Series 1/2 HP Chiller, Turbine Pump
Key Specifications
| Description |
6500 Series 1/2 HP Chiller, Turbine Pump; 100 psi; 13.2 l/min |
|---|---|
| Display |
LED
|
| Connectivity |
Optional: RS232, RS485, Remote On/Off
|
| Working Temperature Range °C |
-10° to 40°
|
| Temperature Stability °C |
±0.1°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Turbine
|
| External Temperature Control Capability |
Optional
|
Key Features
- Large, dual displays present temperature and pressure or flow rate simultaneously
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 35°C
- Powerful turbine pump
- Choice of compressor sizes
- User-adjustable temperature, pressure, and flow rate alarms
- External temperature tracking and communications capability (optional)
- Cool Command™, WhisperCool® (3/4 and 1 HP models)
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
14° to 104°
|
|---|---|
| Working Temperature Range °C |
-10° to 40°
|
| Reservoir Capacity (gallons) |
1.11
|
| Reservoir Capacity (liters) |
4.2
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±0.2°
|
| Temperature Stability °C |
±0.1°
|
| Display |
LED
|
| Pump Type |
Turbine
|
| Pump Speed |
Constant, Single Speed
|
| Process Connections |
1/2" (F) NPT
|
| External Temperature Control Capability |
Optional
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Cool Command Refrigeration Technology |
Yes
|
| Reservoir Drain |
Yes
|
| Heater Option |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
27.6 x 14.5 x 22.6 in
|
| Overall Dimensions (L x W x H) (cm) |
70.2 x 36.8 x 57.5 cm
|
| Compressor Size (HP) |
1/2
|
| Refrigerant |
R134a
|
| Shipping Weight (pounds) |
181.0
|
| Shipping Weight (kilograms) |
82.0
|
| Catalog Page Number |
102-103
|
60 Hz Only
| Part Number |
6560T11A120C
|
|---|---|
| Maximum Pressure (psi) |
100.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.50
|
| Maximum Pressure Flow Rate (l/min) |
13.2
|
| Cooling Capacity @ -10°C (W) | 300 |
| Cooling Capacity @ -5°C (W) |
525
|
| Cooling Capacity @ 0°C (W) | 750 |
| Cooling Capacity @ +10°C (W) | 1150 |
| Cooling Capacity @ +20°C (W) |
1700
|
| Cooling Capacity @ +30°C (W) | 1819 |
| Cooling Capacity @ +40°C (W) | 1874 |
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/16
|
| Regulatory Approvals |
TUV
|
50 Hz Only
| Part Number |
6550T21A130E
|
|---|---|
| Maximum Pressure (psi) |
83.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
2.90
|
| Maximum Pressure Flow Rate (l/min) |
11.0
|
| Cooling Capacity @ -10°C (W) | 290 |
| Cooling Capacity @ -5°C (W) | 525 |
| Cooling Capacity @ 0°C (W) |
765
|
| Cooling Capacity @ +10°C (W) | 1140 |
| Cooling Capacity @ +20°C (W) |
1775
|
| Cooling Capacity @ +30°C (W) | 1899 |
| Cooling Capacity @ +40°C (W) | 1956 |
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/8.9
|
| Regulatory Approvals |
CE
|
