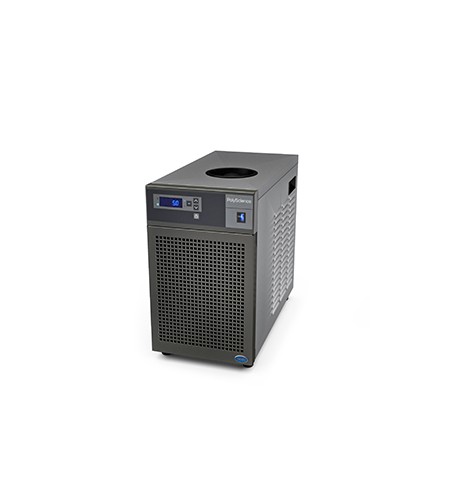

Polyscience MM-7M MM Series Chiller, Centrifugal Pump
Gambar Produk
Polyscience MM-7M MM Series Chiller, Centrifugal Pump
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
106 kali
Update Terakhir
08-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience MM-7M MM Series Chiller, Centrifugal Pump
Key Specifications
| Description |
MM Series 1/10 HP Benchtop Chiller, Centrifugal Pump; 14.5 psi; 13.2 l/min |
|---|---|
| Display |
LED
|
| Connectivity |
Optional: RS232
|
| Working Temperature Range °C |
-5° to 50°
|
| Temperature Stability °C |
±0.1°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Centrifugal
|
Key Features
- Precise and stable temperature control at low temperatures
- Large, easy to read LED display
- Space-saving, benchtop design
- Cooling at ambient temperatures as high as 35°C
- Low flow shutoff and alarm, high and low temperature alarms
- Simple setup, operation, and maintenance
- Choice of two different centrifugal pumps
- Fluid level indicator
- RS232 communication and external water filter optional
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
23° to 122°
|
|---|---|
| Working Temperature Range °C |
-5° to 50°
|
| Reservoir Capacity (gallons) |
0.7
|
| Reservoir Capacity (liters) |
2.65
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Temperature Stability °F |
±0.2°
|
| Temperature Stability °C |
±0.1°
|
| Display |
LED
|
| Pump Type |
Centrifugal
|
| Pump Speed |
Constant, Single Speed
|
| Process Connections |
1/2" (F) NPT
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
20 x 10 x 17 in
|
| Overall Dimensions (L x W x H) (cm) |
50.8 x 25.4 x 43.2 cm
|
| Compressor Size (HP) |
1/10
|
| Refrigerant |
R134a
|
| Shipping Weight (pounds) |
75.0
|
| Shipping Weight (kilograms) |
34.5
|
| Catalog Page Number |
101
|
60 Hz Only
| Part Number |
MM71MX1A110C
|
|---|---|
| Maximum Pressure (psi) |
14.5
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.50
|
| Maximum Pressure Flow Rate (l/min) |
13.2
|
| Cooling Capacity @ -5°C (W) |
115
|
| Cooling Capacity @ 0°C (W) | 195 |
| Cooling Capacity @ +10°C (W) | 305 |
| Cooling Capacity @ +20°C (W) |
435
|
| Cooling Capacity @ +30°C (W) | 465 |
| Cooling Capacity @ +40°C (W) | 505 |
| Cooling Capacity @ +50°C (W) |
535
|
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/12
|
| Regulatory Approvals |
CSA
|
50 Hz Only
| Part Number |
MM72MY1A110E
|
|---|---|
| Maximum Pressure (psi) |
12.5
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.00
|
| Maximum Pressure Flow Rate (l/min) |
11.4
|
| Cooling Capacity @ -5°C (W) | 105 |
| Cooling Capacity @ 0°C (W) |
175
|
| Cooling Capacity @ +10°C (W) | 270 |
| Cooling Capacity @ +20°C (W) |
390
|
| Cooling Capacity @ +30°C (W) | 420 |
| Cooling Capacity @ +40°C (W) | 450 |
| Cooling Capacity @ +50°C (W) | 480 |
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/4.5
|
| Regulatory Approvals |
CE
|
