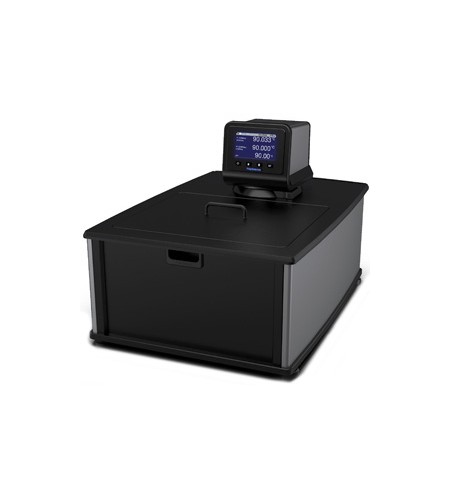

Polyscience PD28H200 28 Liter Heated Circulator
Gambar Produk
Polyscience PD28H200 28 Liter Heated Circulator
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
160 kali
Update Terakhir
07-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience PD28H200 28 Liter Heated Circulator
Key Specifications
| Description |
200, 28 L Htg. Circulator |
|---|---|
| Controller Type |
Performance Digital
|
| Display |
4.3" SmartTouch Touchscreen
|
| Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, Remote On/Off, External Temperature Probe
|
| Languages Supported |
11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
|
| Swivel 180 Rotating Controller |
Yes
|
| Working Temperature Range °C |
Ambient +10° to 200°
|
| Temperature Stability °C |
±0.005°
|
| Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable
|
| Temperature Calibration Capability |
10-point
|
| Working Access (L x W x D) (cm) |
31.4 x 35.9 x 14 cm
|
| Pump Type |
Pressure/Suction
|
| External Temperature Control Capability |
Yes
|
| Flammability Class (DIN 12876-1) |
III (FL)
|
Key Features
- Intuitive 4.3” (10.9 cm) SmartTouch display
- 11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable “home” screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 10-point calibration capability
- Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW™ Virtual Instrument, iPhone® application download)
- Available with DeviceNet/CANbus, Modbus and Profibus options
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Ambient + 20° to 392°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 200°
|
| Reservoir Capacity (gallons) |
7.4
|
| Reservoir Capacity (liters) |
28
|
| Reservoir/Tank Material |
Stainless Steel
|
| Reservoir Cover |
Included
|
| DuraTop |
Yes
|
| LidDock |
Yes
|
| Working Access (L x W x D) (inches) |
12.35 x 14.13 x 5.5 in
|
| Working Access (L x W x D) (cm) |
31.4 x 35.9 x 14 cm
|
| Temperature Stability °F |
±0.01°
|
| Temperature Stability °C |
±0.005°
|
| Display |
4.3" SmartTouch Touchscreen
|
| Display Resolution (Set) |
0.01
|
| Display Resolution (Read) |
0.001
|
| Pump Type |
Pressure/Suction
|
| Pump Speed |
Variable
|
| Process Connections |
1/4" (F) NPT
|
| External Temperature Control Capability |
Yes
|
| Flammability Class (DIN 12876-1) |
III (FL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Cooling Coil |
Yes
|
| Included Software | PolyTemp Viewer, TDMS file viewer, USB driver, PolyScience LabVIEW Virtual Instrument & Functions, PolyTemp Remote iPhone application |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
26.5 x 18 x 16.6 in
|
| Overall Dimensions (L x W x H) (cm) |
67.2 x 45.7 x 42.2 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
82.0
|
| Shipping Weight (kilograms) |
37.1
|
| Catalog Page Number |
54-55
|
60 Hz Only
| Part Number |
PD28H200-A11B
|
|---|---|
| Maximum Pressure (psi) |
4.3
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
5.30
|
| Maximum Pressure Flow Rate (l/min) |
20.1
|
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16"
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
PD28H200-A12E
|
|---|---|
| Maximum Pressure (psi) |
3.6
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
4.40
|
| Maximum Pressure Flow Rate (l/min) |
16.7
|
| Maximum Suction Flow Rate (gpm) |
3.2
|
| Maximum Suction Flow Rate (l/min) |
12.2
|
| Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
| Heater Wattage |
2200
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10
|
| Regulatory Approvals |
CE
|
