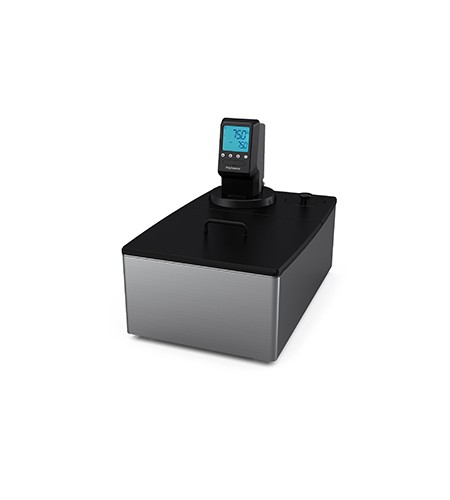

Polyscience PD20H200 20 Liter Heated Circulator
Perhatian!
Spesifikasi Polyscience PD20H200 20 Liter Heated Circulator
Key Specifications
Description |
200, 20 L Htg. Circulator |
---|---|
Controller Type |
Performance Digital
|
Display |
4.3" SmartTouch Touchscreen
|
Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, Remote On/Off, External Temperature Probe
|
Languages Supported |
11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
|
Swivel 180 Rotating Controller |
Yes
|
Working Temperature Range °C |
Ambient +10° to 200°
|
Temperature Stability °C |
±0.005°
|
Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable
|
Temperature Calibration Capability |
10-point
|
Working Access (L x W x D) (cm) |
25 x 31.6 x 14 cm
|
Pump Type |
Pressure/Suction
|
External Temperature Control Capability |
Yes
|
Flammability Class (DIN 12876-1) |
III (FL)
|
Key Features
- Intuitive 4.3” (10.9 cm) SmartTouch display
- 11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable “home” screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 10-point calibration capability
- Includes Enhanced Performance Hardware & Software Package (Pt100 temperature probe, USB flash drive for data logging, stainless steel fittings and tubing adapters, PolyScience LabVIEW™ Virtual Instrument, iPhone® application download)
- Available with DeviceNet/CANbus, Modbus and Profibus options
Related Fluids & Accessories
Common Specifications
Working Temperature Range °F |
Ambient + 20° to 392°
|
---|---|
Working Temperature Range °C |
Ambient +10° to 200°
|
Reservoir Capacity (gallons) |
5.28
|
Reservoir Capacity (liters) |
20
|
Reservoir/Tank Material |
Stainless Steel
|
Reservoir Cover |
Included
|
DuraTop |
Yes
|
LidDock |
Yes
|
Working Access (L x W x D) (inches) |
9.85 x 12.45 x 5.5 in
|
Working Access (L x W x D) (cm) |
25 x 31.6 x 14 cm
|
Temperature Stability °F |
±0.01°
|
Temperature Stability °C |
±0.005°
|
Display |
4.3" SmartTouch Touchscreen
|
Display Resolution (Set) |
0.01
|
Display Resolution (Read) |
0.001
|
Pump Type |
Pressure/Suction
|
Pump Speed |
Variable
|
Process Connections |
1/4" (F) NPT
|
External Temperature Control Capability |
Yes
|
Flammability Class (DIN 12876-1) |
III (FL)
|
Over-Temperature Protection / Failsafe Heater Control |
Yes
|
Low Liquid Level Protection | Yes |
Reservoir Drain |
Yes
|
Cooling Coil |
Yes
|
Included Software | PolyTemp Viewer, TDMS file viewer, USB driver, PolyScience LabVIEW Virtual Instrument & Functions, PolyTemp Remote iPhone application |
Maximum Ambient Temperature °F |
95°
|
Maximum Ambient Temperature °C |
35°
|
Overall Dimensions (L x W x H) (inches) |
24 x 16.5 x 16.6 in
|
Overall Dimensions (L x W x H) (cm) |
61 x 41.9 x 42.2 cm
|
Environmental Compliance | RoHS, WEEE |
Shipping Weight (pounds) |
70.0
|
Shipping Weight (kilograms) |
31.7
|
Catalog Page Number |
54-55
|
60 Hz Only
Part Number |
PD20H200-A11B
|
---|---|
Maximum Pressure (psi) |
4.3
|
Maximum Pressure (bar) | |
Maximum Pressure Flow Rate (gpm) |
5.30
|
Maximum Pressure Flow Rate (l/min) |
20.1
|
Maximum Suction Flow Rate (gpm) | 3.9 |
Maximum Suction Flow Rate (l/min) | 14.7 |
Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16"
|
Heater Wattage |
1100
|
Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
Regulatory Approvals |
ETL
|
50 Hz Only
Part Number |
PD20H200-A12E
|
---|---|
Maximum Pressure (psi) |
3.6
|
Maximum Pressure (bar) | |
Maximum Pressure Flow Rate (gpm) |
4.40
|
Maximum Pressure Flow Rate (l/min) |
16.7
|
Maximum Suction Flow Rate (gpm) |
3.2
|
Maximum Suction Flow Rate (l/min) |
12.2
|
Included Hardware |
PT100 temperature probe, USB drive, stainless steel hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
Heater Wattage |
2200
|
Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10
|
Regulatory Approvals |
CE
|
