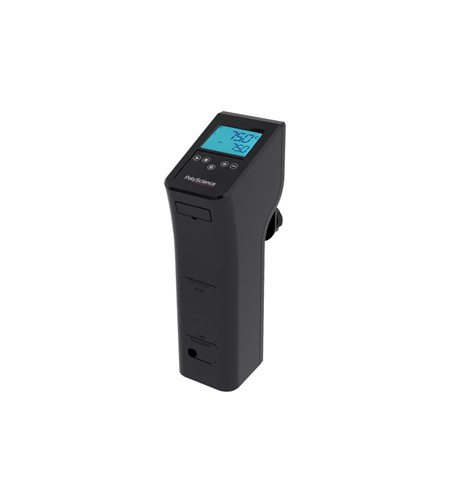

Polyscience LXC-9A LX Immersion Circulator
Perhatian!
Spesifikasi Polyscience LXC-9A LX Immersion Circulator
Key Specifications
| Description |
Large universal icon display, Display actual and set point temperature simultaneously |
|---|---|
| Controller Type |
LX Immersion
|
| Display |
LCD
|
| Languages Supported |
English
|
| Working Temperature Range °C |
Ambient +10° to 98°C
|
| Temperature Stability °C |
±0.07°
|
| Pump Type |
Pressure
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Electrical Plug Options |
Key Features
- Large universal icon display
- Display actual and set point temperature simultaneously
- Timer
- For laboratory use only
- Suitable for tank capacities up to 20 liters
Common Specifications
| Working Temperature Range °F |
Ambient +20° to 208°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 98°C
|
| Reservoir Capacity (gallons) |
5.3
|
| Reservoir Capacity (liters) |
20
|
| Temperature Stability °F |
±0.13°
|
| Temperature Stability °C |
±0.07°
|
| Display |
LCD
|
| Display Resolution (Set) |
0.1
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Pressure
|
| Pump Speed |
One
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
6.5 x 3.75 x 14.0
|
| Overall Dimensions (L x W x H) (cm) |
16.5 x 9.5 x 35.5
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
5.7
|
| Shipping Weight (kilograms) |
2.6
|
60 Hz Only
| Part Number |
LXC-9A11B
|
|---|---|
| Maximum Pressure (psi) |
0.7
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
1.60
|
| Maximum Pressure Flow Rate (l/min) |
6.0
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
LXC-9A12E
|
|---|---|
| Maximum Pressure (psi) |
0.7
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
1.60
|
| Maximum Pressure Flow Rate (l/min) |
6.0
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/6
|
| Regulatory Approvals |
CE
|
