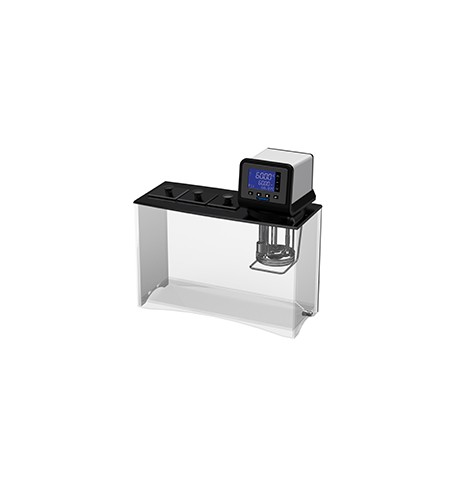

Polyscience AD29VB3S 29 Liter Viscosity Bath, Square Openings
Gambar Produk
Polyscience AD29VB3S 29 Liter Viscosity Bath, Square Openings
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
71 kali
Update Terakhir
07-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience AD29VB3S 29 Liter Viscosity Bath, Square Openings
Key Specifications
| Description |
Viscosity Bath, 29 L, 3 Square |
|---|---|
| Controller Type |
Advanced Digital
|
| Display |
3.75" Touch-Pad LCD
|
| Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
|
| Languages Supported |
4: French, German, Spanish, English
|
| Swivel 180 Rotating Controller |
Yes
|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Temperature Stability °C |
±0.01°
|
| Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable
|
| Temperature Calibration Capability |
1-point
|
| Working Access (L x W x D) (cm) |
(3) x 8.9 x 8.9 x 28.6 cm
|
| Pump Type |
Pressure/Suction
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
Key Features
- Intuitive 3.75” (9.5 cm) display with touch-pad control
- 4 languages: French, German, Spanish, English
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
- On-screen prompts
- Automatic performance optimization and specific heat tuning
- Single-point calibration capability
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Ambient +20° to 185°
|
|---|---|
| Working Temperature Range °C |
Ambient +10° to 85°
|
| Reservoir Capacity (gallons) |
7.66
|
| Reservoir Capacity (liters) |
29
|
| Reservoir/Tank Material |
Polycarbonate
|
| Reservoir Cover |
Square, Included
|
| DuraTop |
Yes
|
| Working Access (L x W x D) (inches) |
(3) x 3.5 x 3.5 x 11.25 in
|
| Working Access (L x W x D) (cm) |
(3) x 8.9 x 8.9 x 28.6 cm
|
| Temperature Stability °F |
±0.02°
|
| Temperature Stability °C |
±0.01°
|
| Display |
3.75" Touch-Pad LCD
|
| Display Resolution (Set) |
0.01
|
| Display Resolution (Read) |
0.01
|
| Pump Type |
Pressure/Suction
|
| Pump Speed |
Variable
|
| Process Connections |
1/4" (F) NPT
|
| Flammability Class (DIN 12876-1) |
I (NFL)
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Low Liquid Level Protection | Yes |
| Reservoir Drain |
Yes
|
| Cooling Coil Port |
Yes
|
| Included Software | PolyTemp Viewer, USB driver |
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
21.4 x 9 x 20.7 in
|
| Overall Dimensions (L x W x H) (cm) |
54.4 x 22.9 x 52.6 cm
|
| Environmental Compliance | RoHS, WEEE |
| Shipping Weight (pounds) |
75.0
|
| Shipping Weight (kilograms) |
34.0
|
| Catalog Page Number |
70-71
|
60 Hz Only
| Part Number |
AD29VB3S-A11B
|
|---|---|
| Maximum Pressure (psi) |
4.3
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
5.30
|
| Maximum Pressure Flow Rate (l/min) |
20.1
|
| Maximum Suction Flow Rate (gpm) | 3.9 |
| Maximum Suction Flow Rate (l/min) | 14.7 |
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16"
|
| Heater Wattage |
1100
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/10
|
| Regulatory Approvals |
ETL
|
50 Hz Only
| Part Number |
AD29VB3S-A12E
|
|---|---|
| Maximum Pressure (psi) |
3.6
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
4.40
|
| Maximum Pressure Flow Rate (l/min) |
16.7
|
| Maximum Suction Flow Rate (gpm) |
3.2
|
| Maximum Suction Flow Rate (l/min) |
12.2
|
| Included Hardware |
Nylon hose adapters for 3/8", 1/4", and 3/16", and 1/4" NPT to M16 adapter
|
| Heater Wattage |
2200
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/10
|
| Regulatory Approvals |
CE
|
