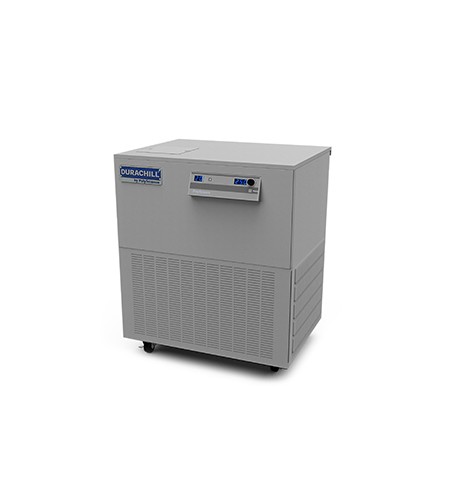

Polyscience DCA300 3 HP DuraChill® Chiller; Air-Cooled
Perhatian!
Spesifikasi Polyscience DCA300 3 HP DuraChill® Chiller; Air-Cooled
Key Specifications
| Description |
3 HP Chiller; Air-Cooled; Up to 10.5kW @ 20°C |
|---|---|
| Display |
LED
|
| Connectivity |
Standard: RS232; Optional: RS485
|
| Working Temperature Range °C |
5° to 35°
|
| Temperature Stability °C |
±0.5°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Contact PolyScience for Options
|
Key Features
- DuraChill® Chillers 2HP and up are not available outside of the United States
- High capacity cooling for lasers, EDM equipment, injection molding, and other heat removal applications
- Displays temperature and pressure or flow rate simultaneously
- User-adjustable temperature, pressure, and flow rate alarms
- Simple operation and maintenance
- Air- or water-cooled (3 HP models)
- Wide variety of pump options available
Common Specifications
| Working Temperature Range °F |
41° to 95°
|
|---|---|
| Working Temperature Range °C |
5° to 35°
|
| Cooling Capacity |
Up to 10.5kW @ 20°C
|
| Reservoir Capacity (gallons) |
7
|
| Reservoir Capacity (liters) |
26.5
|
| Reservoir/Tank Material |
Contact PolyScience for Options
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±0.9°
|
| Temperature Stability °C |
±0.5°
|
| Display |
LED
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Contact PolyScience for Options
|
| Process Connections |
3/4" (F) NPT
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Cool Command Refrigeration Technology |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
30.5 x 37 x 42 in
|
| Overall Dimensions (L x W x H) (cm) |
78 x 94 x 107 cm
|
| Compressor Size (HP) |
3
|
| Refrigerant |
R134a
|
| Shipping Weight (pounds) |
570.0
|
| Shipping Weight (kilograms) |
259.0
|
| Catalog Page Number |
105
|
60 Hz Only
| Electrical Requirements (VAC/Hz/Ph/A) |
Contact PolyScience for Options
|
|---|
50 Hz Only
| Electrical Requirements (VAC/Hz/Ph/A) |
Contact PolyScience for Options
|
|---|
