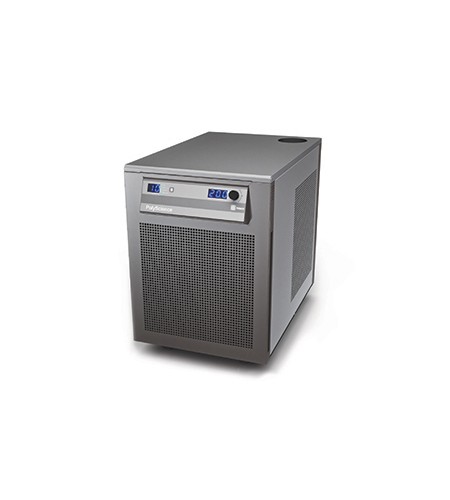

Polyscience 6900T 1.5 HP DuraChill® Chiller, Turbine Pump; Water-Cooled
Gambar Produk
Polyscience 6900T 1.5 HP DuraChill® Chiller, Turbine Pump; Water-Cooled
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
131 kali
Update Terakhir
07-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience 6900T 1.5 HP DuraChill® Chiller, Turbine Pump; Water-Cooled
Key Specifications
| Description |
1.5 HP Chiller, Turbine Pump; Water-Cooled |
|---|---|
| Display |
LED
|
| Connectivity |
Optional: RS232, RS485
|
| Working Temperature Range °C |
5° to 35°
|
| Temperature Stability °C |
±0.5°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Turbine
|
Key Features
- High capacity cooling for lasers, electron microscopes, and other laboratory applications
- Small footprint conserves floor space
- Displays temperature and pressure or flow rate simultaneously
- User-adjustable temperature, pressure, and flow rate alarms
- Simple operation and maintenance
- Air- or water-cooled
- Positive displacement (PD) or turbine (T) pump; other pump options also available
Common Specifications
| Working Temperature Range °F |
41° to 95°
|
|---|---|
| Working Temperature Range °C |
5° to 35°
|
| Reservoir Capacity (gallons) |
3.5
|
| Reservoir Capacity (liters) |
13.25
|
| Reservoir/Tank Material |
Polyethylene
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Air Filter |
Yes
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±0.9°
|
| Temperature Stability °C |
±0.5°
|
| Display |
LED
|
| Display Resolution (Read) |
0.1
|
| Pump Type |
Turbine
|
| Process Connections |
1/2" (F) NPT
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Liquid Level Indicator |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
30.5 x 19 x 26 in
|
| Overall Dimensions (L x W x H) (cm) |
78 x 48 x 66 cm
|
| Compressor Size (HP) |
1.5
|
| Refrigerant |
R134a
|
| Shipping Weight (pounds) |
340.0
|
| Shipping Weight (kilograms) |
154.0
|
| Catalog Page Number |
104
|
60 Hz Only
| Part Number |
6960T56A270D
|
|---|---|
| Maximum Pressure (psi) |
100.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
11.00
|
| Maximum Pressure Flow Rate (l/min) |
41.6
|
| Cooling Capacity @ +10°C (W) | 4529 |
| Cooling Capacity @ +20°C (W) |
5328
|
| Cooling Capacity @ +30°C (W) | 6127 |
| Heater Wattage |
1000
|
| Electrical Requirements (VAC/Hz/Ph/A) |
230/60/3/22
|
| Regulatory Approvals |
TUV
|
50 Hz Only
| Part Number |
6950T56A270E
|
|---|---|
| Maximum Pressure (psi) |
83.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
9.00
|
| Maximum Pressure Flow Rate (l/min) |
34.0
|
| Cooling Capacity @ +10°C (W) | 3895 |
| Cooling Capacity @ +20°C (W) |
4582
|
| Cooling Capacity @ +30°C (W) | 5269 |
| Heater Wattage |
1000
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/24.5
|
| Regulatory Approvals |
CE
|
