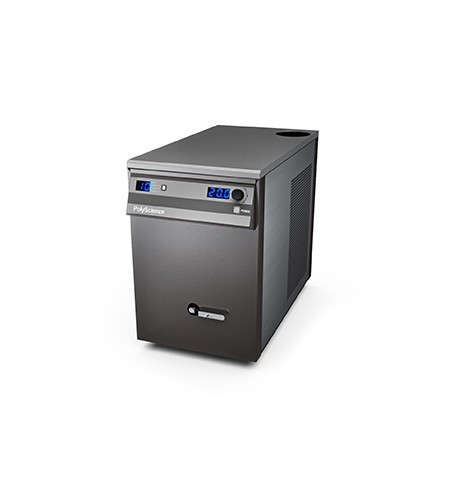

Polyscience Model 4100 Liquid-to-Liquid Cooler
Gambar Produk
Polyscience Model 4100 Liquid-to-Liquid Cooler
Brand
Polyscience
Pengiriman
3 Hari Setelah Pembayaran
Lokasi
Jawa Barat - Bekasi
Harga
Kontak Kami
Dilihat Sebanyak
106 kali
Update Terakhir
07-04-2016
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Polyscience Model 4100 Liquid-to-Liquid Cooler
Key Specifications
| Description |
Liquid-to-Liquid Cooler |
|---|---|
| Connectivity |
Optional: RS232, RS485, Remote On/Off
|
| Working Temperature Range °C |
Facility water +10° to 60°
|
| Temperature Stability °C |
±0.4°
|
| Temperature Calibration Capability |
1-point
|
| Pump Type |
Turbine
|
| External Temperature Control Capability |
Optional
|
Key Features
- Protects precision equipment from facility water contaminants
- Quiet, energy-efficient liquid-to-liquid heat removal
- Displays temperature and pressure or flow rate information
- Built-in temperature and low flow alarms
Related Fluids & Accessories
Common Specifications
| Working Temperature Range °F |
Facility water +20° to 140°
|
|---|---|
| Working Temperature Range °C |
Facility water +10° to 60°
|
| Reservoir Capacity (gallons) |
1.11
|
| Reservoir Capacity (liters) |
4.2
|
| Reservoir Cover |
Screw-on Cap
|
| Cleanable Fluid Filter |
Yes
|
| Temperature Stability °F |
±0.8°
|
| Temperature Stability °C |
±0.4°
|
| Pump Type |
Turbine
|
| Pump Speed |
Constant, Single Speed
|
| Process Connections |
1/2" (F) NPT
|
| External Temperature Control Capability |
Optional
|
| Over-Temperature Protection / Failsafe Heater Control |
Yes
|
| Reservoir Drain |
Yes
|
| Maximum Ambient Temperature °F |
95°
|
| Maximum Ambient Temperature °C |
35°
|
| Overall Dimensions (L x W x H) (inches) |
27.6 x 14.5 x 22.6 in
|
| Overall Dimensions (L x W x H) (cm) |
70.2 x 36.8 x 57.5 cm
|
| Shipping Weight (pounds) |
175.0
|
| Shipping Weight (kilograms) |
79.5
|
| Catalog Page Number |
108
|
60 Hz Only
| Part Number |
4150T21A130D
|
|---|---|
| Maximum Pressure (psi) |
100.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
3.50
|
| Maximum Pressure Flow Rate (l/min) |
13.2
|
| Cooling Capacity (W/BTU) |
15000 / 52855 based on 15°C ΔT
10000 / 34100 based on 10°C ΔT
4500 / 5345 based on 5°C ΔT
ΔT = Process water temperature - facility water temperature
|
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
208-230/60/1/3
|
| Regulatory Approvals |
CSA
|
50 Hz Only
| Part Number |
4150T21A130E
|
|---|---|
| Maximum Pressure (psi) |
83.0
|
| Maximum Pressure (bar) | |
| Maximum Pressure Flow Rate (gpm) |
2.90
|
| Maximum Pressure Flow Rate (l/min) |
11.0
|
| Cooling Capacity (W/BTU) |
15000 / 52855 based on 15°C ΔT
10000 / 34100 based on 10°C ΔT
4500 / 5345 based on 5°C ΔT
ΔT = Process water temperature - facility water temperature
|
| Included Hardware |
Two sets of Inlet/Outlet Adapters: ½ inch male NPT, 5/8 inch male NPT
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/3
|
| Regulatory Approvals |
CE
|
