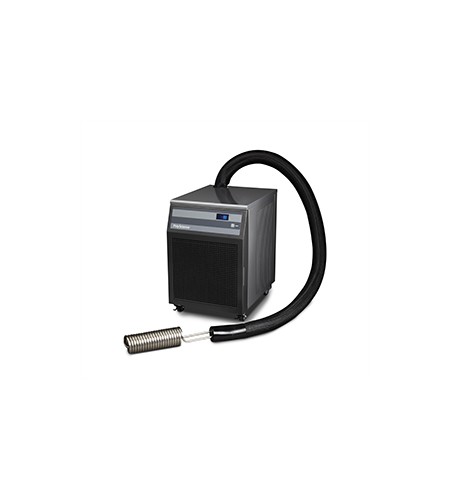

Polyscience IP-100RC IP-100 Low Temperature Cooler, 3" Rigid Coil Probe
Perhatian!
Spesifikasi Polyscience IP-100RC IP-100 Low Temperature Cooler, 3" Rigid Coil Probe
Key Specifications
| Description |
Immersion Probe-100, 3" Rigid Coil |
|---|---|
| Display |
Temperature
|
| Working Temperature Range °C |
-100° to -60°
|
| Temperature Control (°C) |
Fixed at -100°C
|
Key Features
- Continuous cooling to temperatures as low as -100°C
- Designed to run at maximum cooling
- An economical alternative to dry ice or liquid nitrogen
- Excellent for trapping applications, freeze drying, and rapidly cooling small volumes of liquids
Common Specifications
| Working Temperature Range °F |
-148° to -76°
|
|---|---|
| Working Temperature Range °C |
-100° to -60°
|
| Temperature Control (°F) |
Fixed at -148°
|
| Temperature Control (°C) |
Fixed at -100°C
|
| Cleanable Air Filter |
Yes
|
| Display |
Temperature
|
| Maximum Ambient Temperature °F |
86°
|
| Maximum Ambient Temperature °C |
30°
|
| Overall Dimensions (L x W x H) (inches) |
20.1 x 15 x 22.3 in
|
| Overall Dimensions (L x W x H) (cm) |
51.1 x 38.1 x 56.6 cm
|
| Refrigerant |
R404A & R508B
|
| Immersion Probe Type |
Rigid Coil
|
| Probe Diameter (inches) |
3
|
| Probe Diameter (cm) |
7.62
|
| Probe Length (inches) |
Coil: 9 / Exposed: 17
|
| Probe Length (cm) |
Coil: 22.9 / Exposed: 43.2
|
| Flexible Hose Diameter (inches) |
2.83
|
| Flexible Hose Diameter (cm) |
7.14
|
| Flexible Hose Length (feet) |
6
|
| Flexible Hose Length (m) |
1.83
|
| Shipping Weight (pounds) |
162.0
|
| Shipping Weight (kilograms) |
73.5
|
| Catalog Page Number |
114-115
|
60 Hz Only
| Part Number |
P10N6A101B
|
|---|---|
| Cooling Capacity @ -100°C (W) |
0
|
| Cooling Capacity @ -80°C (W) |
35
|
| Cooling Capacity @ -65°C (W) |
85
|
| Electrical Requirements (VAC/Hz/Ph/A) |
120/60/1/11.5
|
50 Hz Only
| Part Number |
P10N6A102E
|
|---|---|
| Cooling Capacity @ -100°C (W) |
0
|
| Cooling Capacity @ -80°C (W) |
35
|
| Cooling Capacity @ -65°C (W) |
85
|
| Electrical Requirements (VAC/Hz/Ph/A) |
240/50/1/7.5
|
| Regulatory Approvals |
CE
|
