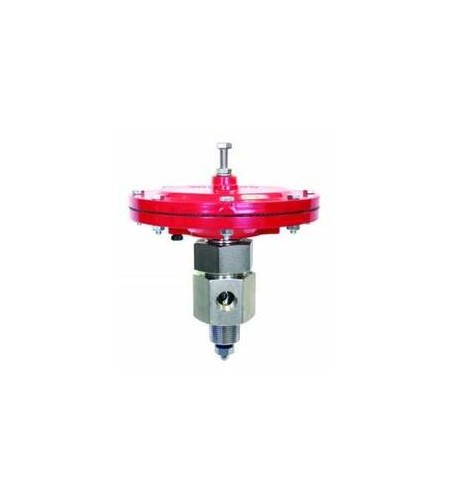

NPEUMATICALLY CONTROLLED DUMP VALVES - MURPHY DVU SERIES DUMP VALVES

PNEUMATICALLY CONTROLLED DUMP VALVES - MURPHY DVU SERIES DUMP VALVES

- Keterangan: PNEUMATICALLY CONTROLLED DUMP VALVES Model : DVU Series Dump Valves BRAND : MURPHY Features : * For Separators/ Scrubbers to 2000 psi ( 13.8 MPa) [ 138 bar] Working Pressure * Hex union Allows Plug and Seat Replacement Without Piping Removal * Operates on 30– 70 psi ( 207– 483 kPa) [ 2.07– 4.83 bar] Control Pressure * Compatible With Murphy Level Controls * Soft Seat Valve * Manual Valve Operator Specifications : * Operating Temperature: -30 to 250° F ( -34.4 to + 121° C) * Valve Operating Pressure : Please see catalog NOTE: Dimensions are in inches and ( millimeters) * Maximum Working Pressure: DVU150 and DVU175: 1800 psi ( 12.4 MPa) [ 124 bar] . DVU2105: 500 psi ( 3.44 MPa) [ 34 bar] . DVU2115: 1500 psi ( 10.3 MPa) [ 103 bar] . DVU2120: 2000 psi ( 13.8 MPa) [ 138 bar] . * Body Material: Electroless Nickel Plated 12L14 Carbon Steel. * Internal Wetted Parts: Plug Seal: 90 Durometer Urethane. Other: 303 stainless steel; Electroless Nickel Plated 12L14 Carbon Steel.
