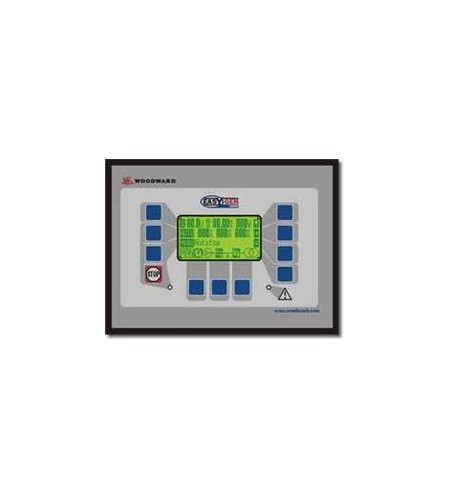

EASYGEN 1500 - 55B GENSET CONTROL

EASYGEN 1500 - 55B GENSET CONTROL

- Model : EASYGEN 1500 - 55B
- Brand : WOODWARD
- Negara Asal : JERMAN
- Keterangan : EASYGEN 1500 - 55B GENSET CONTROL. BRAND : WOODWARD PART NUMBER : 8440 - 1809 easYgen 1500 This controller is one of a series of new and powerful genset controls .This trend-setting technology offers a maximum of flexibility for each user. New technologies included are: FlexAppTM: This intelligent and flexible feature provides the tools to easily configure for multiple applications. DynamicsLCDTM: The graphical LCD provides softkeys that vary depending on application and operation. FlexInTM: The two analog inputs can be freely configured ( adaptable for each type of sensor) FlexCANTM: Flexible isolated CAN bus ( allows long dis-tance networks) for multiple use. Selectable during con-figuration: CANopen, or CAN ( CAL) ; coupling of easYlite remote annunciator; coupling of 3rd party expansion cards supported ( request detailed information from our sales department) . J1939 protocol for ECU coupling and alarm manage-ment, remote start/ stop with Scania ECU possible. LogicsManagerTM: A large number of measuring values, inputs, internal states or constant values can be com-bined logically to operate a relay contact or an internal function. FlexAppTM Technology Flexible and multifunctional DynamicsLCDTM AMF/ loss of mains auto start/ stop Complete engine, generator, and mains protection in one unit True rms voltage sens-ing with FlexRangeTM True rms current/ power sensing kWh meter Counters for engine starts, operating hours, maintenance call Freely configurable discrete inputs Freely configurable analog FlexInTM inputs Freely programmable relay outputs with LogicsManagerTM PC and/ or front panel configurable Multi-lingual capability 10 languages in 1 unit FlexCANTM communi-cation ( 32 participants, isolated) Modbus RTU Slave 6.5 to 40.0 Vdc power supply Flush-mounting CE marked UL/ cUL Listed GL, LR Marine Approval
