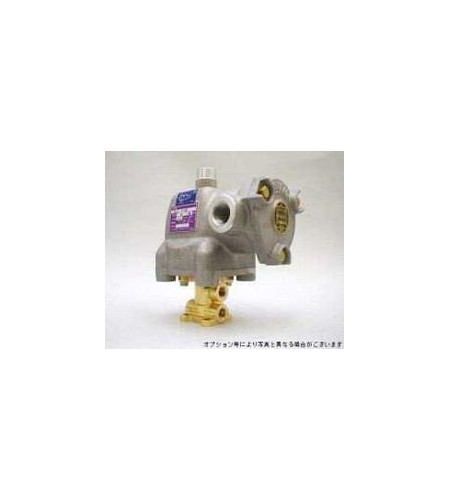

THREE WAY SOLENOID VALVE M50 SERIES KANEKO SANGYO
Gambar Produk
THREE WAY SOLENOID VALVE M50 SERIES KANEKO SANGYO
Update Terakhir
07-03-2016
Minimum Pembelian
1 unit
Dilihat Sebanyak
118 kali
Lokasi
DKI Jakarta - Jakarta Barat
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi THREE WAY SOLENOID VALVE M50 SERIES KANEKO SANGYO
THREE WAY SOLENOID VALVE M50 SERIES KANEKO SANGYO
- Model : M50 SERIES
- Brand : KANEKO SANGYO
- Negara Asal : JEPANG
- Keterangan : THREE WAY Solenoid Valve M50 SERIES Brand : Kaneko Sangyo Co., Ltd * Packed type * Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid. * Safe explosion-proof construction. * Explosion-proof type valves certified by the Ministry of Labor. * Highly durable. * A mechanical life of five million operations or more is expectable. * Manual check is possible. * Manual operation is possible. This mode can be used for operation check or switching in case of emergency. STANDARD SPECIFICATIONS * FLUID : CLEAN AIR * FLUID TEMPERATURE : -20 - 60 deg.C * AMBIENT TEMPERATURE : -20 - 60 deg.C * DUTY CYCLE : 100% CONTINUOUSLY RATED * OPERATING VOLTAGE RANGE : + 10% , -15% * WORKING PRESSURE : 0 - 0.099 MPa * Cv. FLOW FACTOR : 0.18 * ELECTRICAL SPECIFICATIONS : - 100 VAC, 50 Hz - 110 VAC, 60 Hz - 200 VAC, 60 Hz - 220 VAC, 50 Hz - 24 VDC - 48 VDC - 110 VDC - Etc
- Model : M50 SERIES
- Brand : KANEKO SANGYO
- Negara Asal : JEPANG
- Keterangan : THREE WAY Solenoid Valve M50 SERIES Brand : Kaneko Sangyo Co., Ltd * Packed type * Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid. * Safe explosion-proof construction. * Explosion-proof type valves certified by the Ministry of Labor. * Highly durable. * A mechanical life of five million operations or more is expectable. * Manual check is possible. * Manual operation is possible. This mode can be used for operation check or switching in case of emergency. STANDARD SPECIFICATIONS * FLUID : CLEAN AIR * FLUID TEMPERATURE : -20 - 60 deg.C * AMBIENT TEMPERATURE : -20 - 60 deg.C * DUTY CYCLE : 100% CONTINUOUSLY RATED * OPERATING VOLTAGE RANGE : + 10% , -15% * WORKING PRESSURE : 0 - 0.099 MPa * Cv. FLOW FACTOR : 0.18 * ELECTRICAL SPECIFICATIONS : - 100 VAC, 50 Hz - 110 VAC, 60 Hz - 200 VAC, 60 Hz - 220 VAC, 50 Hz - 24 VDC - 48 VDC - 110 VDC - Etc
