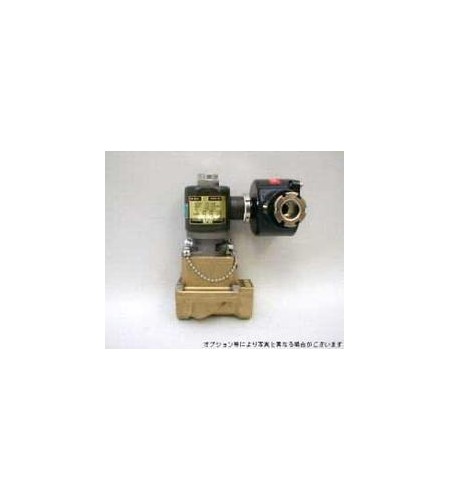

M20 SERIES KANEKO SOLENOID VALVE

M20 SERIES KANEKO SOLENOID VALVE

- Model : M20 SERIES
- Brand : KANEKO SANGYO
- Asal Negara : JEPANG
- kETERANGAN : M20 SERIES KANEKO SOLENOID VALVE Description : - Compact, but high flow rates are Obtainable. - Freely mountable in any position. PRECAUTIONS ON HANDLING Be sure to provide a minimum operating pressure differential of 0.05 MPa or more at any time because the valve is pilot-actuated.M STANDARD SPECIFICATIONS + Size : 15( 1/ 2 " ) , 20( 3/ 4 " ) , 25( 1 " ) + Body Material : C3771 ( brass forging) + Operation : Pilot-operated, normally closed + Solenoid Enclosure : General purpose type, Explosion-proof type ( d2G4, d3aG4, SDP) + luid Temperature : -20 to + 60 Deg C + Ambient Temperature : -20 to + 60 Deg C + Max. Working Pressure : ( Kgf/ Cm2) + Fluid : Air, Gas, Water, Kerosene, Oi + Oil Insulaton Class : Bl + Working Pressure : - GAS 0.05 - 0.09MPa - LIQUID 0.05 - 1.6MPa + Operating Pressure Differential : usually 0.05MPa or over + Fluid Temperature : 20 deg.C - 60 deg.C + Ambient Temperature : 20 deg.C - 60 deg.C( But to be used within the range of fluid dose not frozen.) + Duty Cycle : 100% Continuously Rated + Operating Voltage Range : 10% , 15% + Electrical Specifications : - 100V/ 50Hz; 100V/ 60Hz; 110V/ 60Hz; - 200V/ 50Hz; 200V/ 60Hz; 220V/ 60Hz TYPE NUMBER ( Designation) M20C - 15 - A12P - 2S - T + Valve Type No. : M20 : Two Way Solenoid Valve + Function C : Normally Closed + Solenoid Type No. : - A12P-2 : General Purpose Type for AC Single Coil - D12P-2 : General Purpose Type for DC Single Coil - AE12PU-2 : Explosion Proof Type for AC Single Coil - DE12PU-2 : Exlosion Proof Type for DC Single Coil + Type Of Connection S : Screwed Connection + Terminal Box Attached : TF-60 Outdoor Terminal Box ( for Generala Purpose Type Only)
