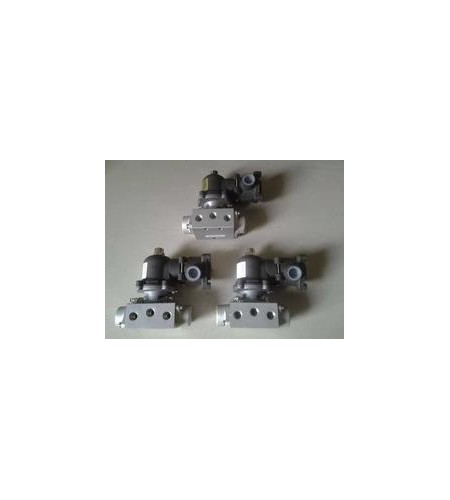

4 WAY KANEKO SOLENOID VALVE M15G SERIES KANEKO SANGYO

4 WAY KANEKO SOLENOID VALVE M15G SERIES KANEKO SANGYO

- Model : M15G SERIES
- Brand : KANEKO SANGYO
- Negara Asal : JEPANG
-  Keterangan : 4 WAY KANEKO SOLENOID VALVE M15G SERIES BRAND : KANEKO SANGYO CO., LTD This valve is 4 Way Solenoid Valve, pilot operated, 2 positions, double exhausts for pneumatic pressure, to be used for automatic control of double acting power cylinder of diaphragm valve and other various pneumatic pressure operating devices as compact type and light weight type, especially, explosion-proof type terminal box, conduit turns with in the limit of 300 degress. Easy connection of wire + Type : M15G ... Pilor operated 4 Way + Pipe Size : Rc 1/ 4 " , 3/ 8 " ... 2 Positions + Orifice Size : Dia. 6 + Solenoid Enclosure : General Purpose Type - AC ... A12PG - DC ... D12PG Explosion-proof Type - AC ... AE12PU - DC ... DE12PU + Media : Clean Air ( not including dust or water) + Working Pressure : 0.1 ~ 0.99 MPa + Cv Factor : 0.87 + Media Temperature : - 20 ~ + 60 Deg C + Ambient Temperature : -20 ~ + 60 Deg C + Frequency : 300 Cycle / Min. Continuous Max + Durability : Over 500 Million times + Response Time : 0.1 Second + Coil : Continuous Duty Molded Class H + Standard Voltage : - AC : 100V/ 50Hz, 100V/ 60Hz, 200V/ 50Hz, 200/ 60Hz, 220V/ 60Hz - DC : 24V, 100V, 110V - Operating Voltage Range : + 10% ~ -15%
