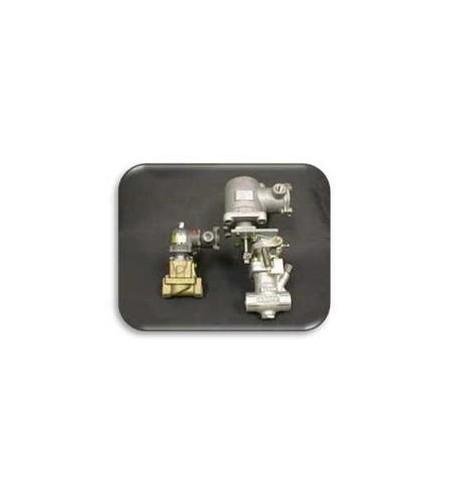

M30 SERIES KANEKO SOLENOID VALVE

Keterangan M30 SERIES KANEKO SOLENOID VALVE DESCRIPTION : + Can be used even with a pressure differential of zero as main and pilot valves are directly connected to each other. + Pressure losses are small as nominal size is equal to seat size. + Products certified for high-pressure gas services are also available. PRECAUTIONS ON HANDLING Product designations are determined according to specifications. STANDARD SPECIFICATIONS + Function : ( 1) Normally Closed Type : - Valve closed when de-energized - Valev opens when energized ( 2) Normally open Type : - Valve opens when de-energized - Valev closed when energized + Size & Cv Flow Factor - Size : 15( 1/ 2 " ) : Cv Flow Factor : 3.82 - Size : 20( 3/ 4 " ) : Cv Flow Factor : 8.4 - Size : 25( 1 " ) : Cv Flow Factor : 12.3 - Size : 32( 1-1/ 4 " ) : Cv Flow Factor : 14.1 - Size : 40( 1-1/ 2 " ) : Cv Flow Factor : 28.7 - Size : 50( 2 " ) : Cv Flow Factor : 48.5 + Pipe Connection : - Screwed : PT, NPT under 32 ( 1-1/ 4 " ) - Flanged : JIS, ANSI ( standard is JIS 10 Kg/ Cm2, but stainless steel is manufactured up to JIS 30 Kg/ Cm2) + Material : ( 1) Main body : BC6, SCS13, SCS14, FC20 ( 2) Seat portion : - Soft Seat ...NBR, Viton, Neo-plane - Metal seat ... ABB2, SUS304, SUS316 ( 3) Packing : NBR, Viton, Neo-plane, EPR, Teflon ( 4) Inner metal portion : Copper alloy, SUS304, SUS316 + Fluid : Gas, Liquid, Steam, Vacuum 760 mmHg + Fluid Viscosity : to be used under Max. 250 cst ( redwood No. 1 Sec 1500) MODEL NO. DESCRIPTION M30C - 15 - AE44 - BS11 - TF + Valve Type No. : - M30 : 2 Way solenoid valve - M31 : Manual reset 2-way solenoid valve for water + Function : - C : Normally Closed ( Energized Open) - D : Normally Open ( Energized Closed) + Size : - 15( 1/ 2 " ) , 20( 3/ 4 " ) , 25( 1' ) , 32( 1-1/ 4 " ) , 40 ( 1-1/ 2 " ) , 50( 2 " ) + Solenoid Model : - A44 : For AC general purpose use - D44 : For DC general purpose use - AE44 : For AC Explosion-proof and Water tight - DE44 : For DC Explosion-proof and Water tight + Body Material : - B : BC6 ( JIS, Bronze) - S : SCS13, SCS14 ( Stainless Steel) - F : FC20 ( Cast Iron) + Pipe Connection : - S : Screwed - F : Flanged + Inner Construction : - 1 : Soft Seal - 2 : Metal Seal - 5 : Metal Seal + Inner Material : - 1 : BsBM, ABB2 ( copper Aloy) - 2 : SUS304 - 3 : SUS316 - 4 : SUS304
