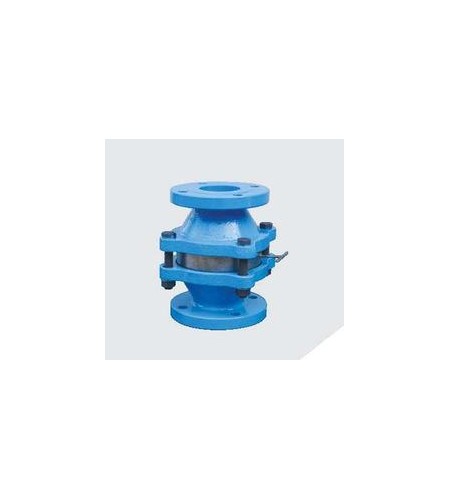

TOP SAFE EXPLOSION PROOF IN LINE FLAME ARRESTER

TOP SAFE EXPLOSION PROOF IN LINE FLAME ARRESTER

- Model : KSFI
- Brand : TOP SAFE
- Negara Asal : KOREA
- Keterangan : EXPLOSION PROOF IN FLAME ARRESTER Model : KSFI material : Alumunium, carbon steel, stainless steel, size :
  2" ~ 24" gas group : II A, II B, II C, benefits - meet USCG, IMO MSC/ circ, 667 & EN 12874 requirements - design for explosion &
  deflagration proof - maximum capacity & minimum pressure drop - quick & easy removable element - very easy cleaning & maintenence
  available vertical & horizontal installation - high quality corossion & chemical resistance the flame arrester of model KSFI is designed
  manufactured, and tested according to API 2000 & BS 7244 (british standard specification) code. installed in the top nozzle of the several
  kinds of the flamemable low pressure storage tank (the ignition point below 65) it is the explosion proof and deflagration proof which blocks
  the influx of flame ignified externally into the tank. in general it is combined with pressure and vacuum relief valve ( KSBB model), and
  designed to provide a large quantity of flow under the small pressure differences. designed to use for the transfort line of the flammmable
  low pressure gas and installed in a IN-LINE SYSTEM, like the pipe line which transfer the flammable gas to the inclinator flame shell or the
  discharging line of combusted gas to the air, it blocks the spread of ignified fire.
