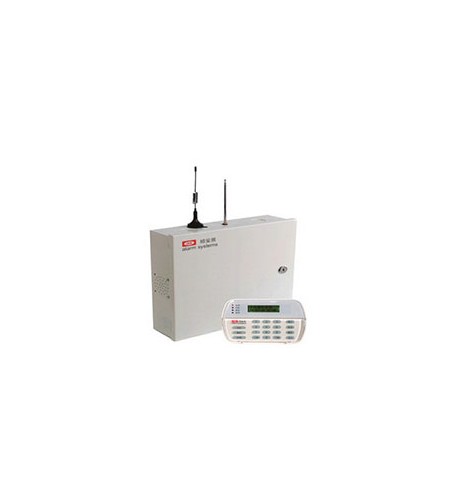

AS-9000 Series Alarm Control Host

Function Instructions

• LCD keyboard operation and menu programming instead of the digital code and tedious manual.
• High-speed digital communications, compatible with the Contact ID digital communication protocol.
• To prevent the crash, the host has watchdog function.
• Intelligent voice prompt, build-in voice module, can make voice alarm.
• Can carry out various programming of the system settings, such as alarm mode, the types of protection zones, remote control, alarm, telephone number, telephone line detection, etc.
• Wired and wireless defense zones compatible.
• 1 installer programming password which is 6 digits and can be changed by himself. 1 main user password, 9 groups sub-user password which are 6 digits and can be set according to their own requirement. This can enhance security.
• Support fast operation by keypad, easy and convenient.
• Can set six groups of alarm telephone number (either landline or mobile phone number) and 2 groups alarm center telephone number, 2 groups of special number for arm and disarm. So the upload is free of charge. And when alert is activated, it will do dial the numbers circularly.
• 7 types of arm: away arm, at home arm, delay arm, remote arm, fast force arm, timing arm, remote controller arm.
• 4 types of disarm: disarm by keypad password, telephone remote disarm, timing disarm, remote controller disarm.
• 7 types of defense zone: Ordinary zone, delay zone, 24-hour zone, internal zone, doorbell zone, fire alarm zone, emergency zone, medical treatment zone.
• Customizable alarm time delay and time of bell.
• “Black Box” function, can store 1500 event record. Can query the zone alarm information, arm and disarm information and the battery voltage.
• Can arm by remote controller or telephone. And if the defense zone is triggered, it will activate the automatic bypass and broadcast the corresponding voice information.
• Telephone line fault detection function. If the telephone line is cut or short circuit, the system will alarm.
• The telephone has priority to answer the alarm call. Even if the telephone is busy, it will get through the alarm call to make sure alarm report is upload successfully.
• The host has a charging circuit by DC12V sealed lead-acid battery to guarantee the working even if it is power failure.
• When the battery can’t charge and discharge and cause low voltage, it will power-off to avoid damage to the battery.

Main Technical Performance Indicators

• Power supply：                                   AC220V+10%
• Static Consumption Current：        ≤150mA
• Power：                                                ≤1W
• Alarm Output：                                  ≤800mA, 12V
• Output Voltage：                               DC12V～15V
• Wireless Receiving Frequency：    315MHZ/433MHZ optional
• Working Temperature：                  -10 ～ 55°C
• Working Humidity：                         40 ～ 70%
